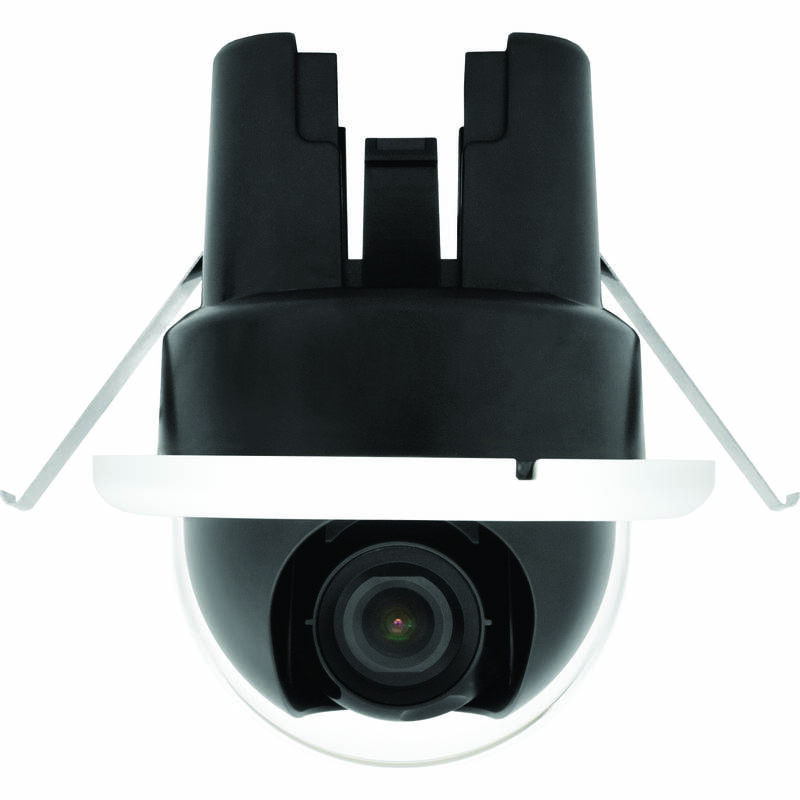

1.0 Megapixel (720p) Indoor In-Ceiling Micro Dome, 2.8mm f/1.6 lens

Part Code: 1.0-H3M-DC1

Avigilon HD Micro Dome cameras are the industry’s smallest high-definition dome cameras, enabling a cost-effective transition into HD video surveillance and all the advantages of the Avigilon Control Center software.

Available in surface, in-ceiling, and pendant mount form factors, the HD Micro Dome cameras truly deliver a versatile solution for monitoring activities in a variety of environments including indoor or outdoor building entrances and hallways, and are an ideal solution for applications in retail, hospitality, financial & banking and commercial.

  • Unsurpassed image quality
  • Three versatile form factors for quick and easy installation
  • Factory focused for quick and easy installation
  • 86° horizontal angle of view allows for full room coverage from any corner
  • H.264 and Motion JPEG compression
  • ONVIF API Compliance with version 1.02, 2.00 and Profile S
  • Surface variant ready for all environments with IP66 weather rating
  • Power over Ethernet
Model Dome
Area of application Indoor
Transmission TCP/IP
Power over Ethernet 802.3 af (PoE)
Number of pixels (Megapixel) 1
Focal range 2.8...2.8 mm
Power consumption 4 W
Colour White
Wireless no
With IR lamp no
Number of digital inputs 0
Number of digital outputs 0
Number of audio inputs 0
Number of audio outputs 0
Vandal-resistant no
IK Rating None
Built-in Analytics no
Horizontal field of view 86...86 °
ONVIF-compliant yes
Mounting method Ceiling
Property picture system Colour

Key Features

  • Model: Dome
  • Area of application: Indoor
  • Transmission: TCP/IP
  • Power over Ethernet: 802.3 af (PoE)
  • Number of pixels (Megapixel): 1
  • Focal range: 2.8...2.8 mm
