Excel Category 6 Cable U/UTP Dca LS0H 305m Box - Violet

Part Code: 100-071

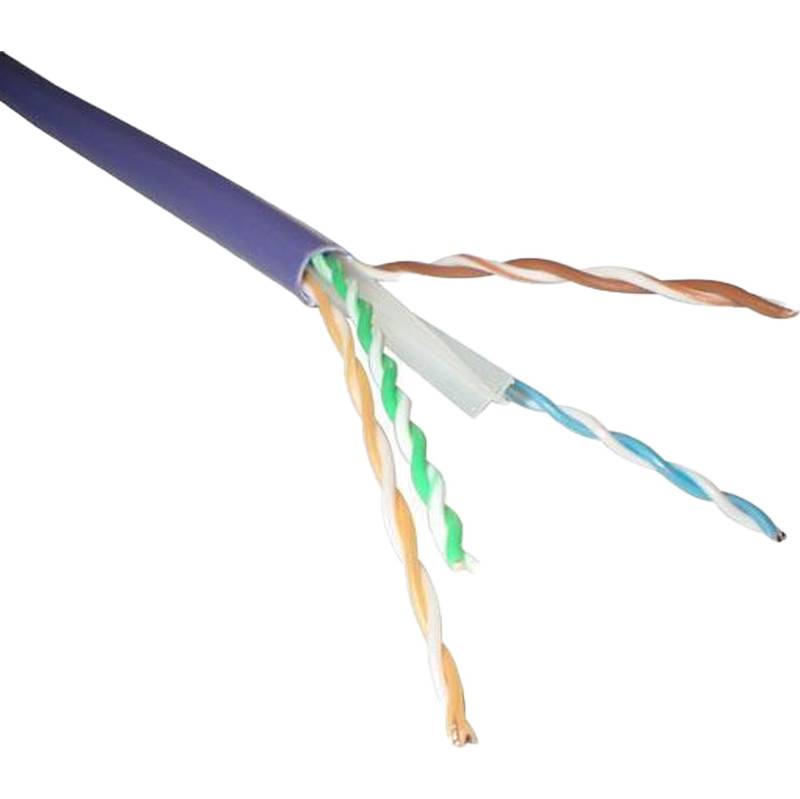

Excel Category 6 Unscreened LSOH cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central X-shaped polyethylene filler, which assists in maintaining and enhancing the cable performance.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Category 6
  • Choice of colour
  • Sequential metre markings
  • EC Verified
  • LS0H outer sheath
  • Euroclass Dca-s2-d2-a1
Category 6
Overall screening None
Conductor screening None
Outer sheath colour Violet
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s2
Euro class flaming droplets/particles according to EN 13501-6 d2
Euro class acidity according to EN 13501-6 a1
AWG-size 23
Specification core insulation PE
Core identification Colour
Outer sheath material Copolymer, thermoplastic (LS0H)
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 6.2 mm
Installation Temperature Range 0...60 °C
Operating Temperature Range -20...75 °C
NVP value 69 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 6
  • Overall screening: None
  • Conductor screening: None
  • Outer sheath colour: Violet
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s2
