Excel Category 6 Cable U/UTP 24AWG Dca LS0H 305m Box - Violet

Part Code: 100-080

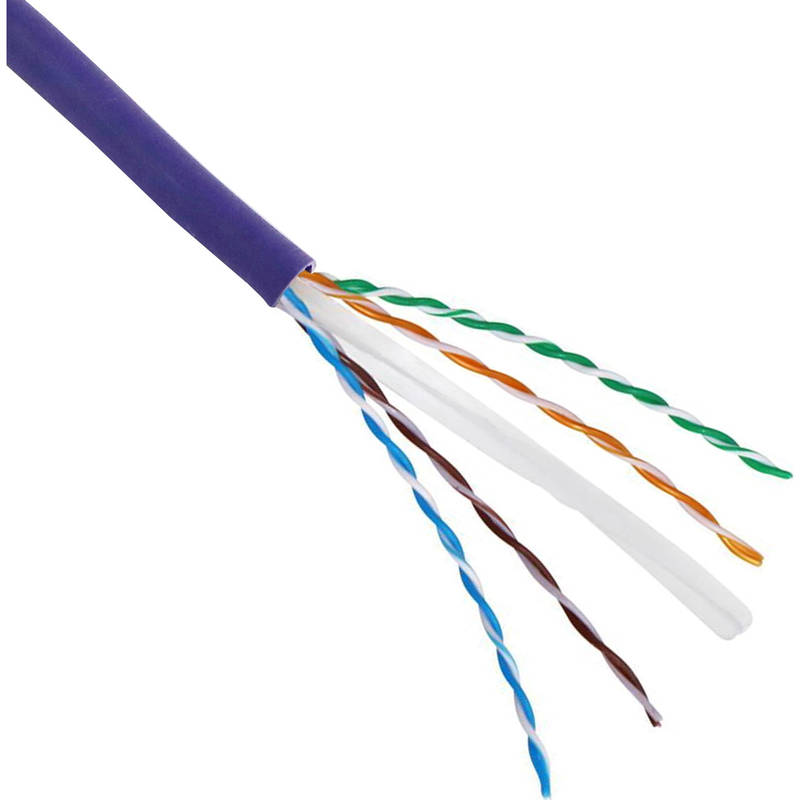

Excel Category 6 U/UTP reduced diameter cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded 24 AWG polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cable's performance.

The printing detail along the outer sheath includes the cable part code, specification detail and our 305 to 0 metre marked system. As the cable is dispensed from the box, the sequential marking counts down from 305 to 0 metres. As well as reducing waste and accounting easily for cables installed, this innovative print legend finally removes the guesswork from assessing the amount of cable remaining in partly used boxes.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Category 6
  • 24 AWG
  • ISO 11801
  • 25 Year Warranty
  • Sequential metre marking
  • Fast feed box
  • Euroclass Dca-s2-d2-a1
Category 6
Overall screening None
Conductor screening None
Outer sheath colour Violet
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s2
Euro class flaming droplets/particles according to EN 13501-6 d2
Euro class acidity according to EN 13501-6 a1
AWG-size 24
Specification core insulation PE
Core identification Colour
Outer sheath material Copolymer, thermoplastic (LS0H)
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 5.4 mm
Installation Temperature Range -10...60 °C
Operating Temperature Range -20...75 °C
NVP value 69 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 6
  • Overall screening: None
  • Conductor screening: None
  • Outer sheath colour: Violet
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s2
