100-084-305M
Image 1 of 1

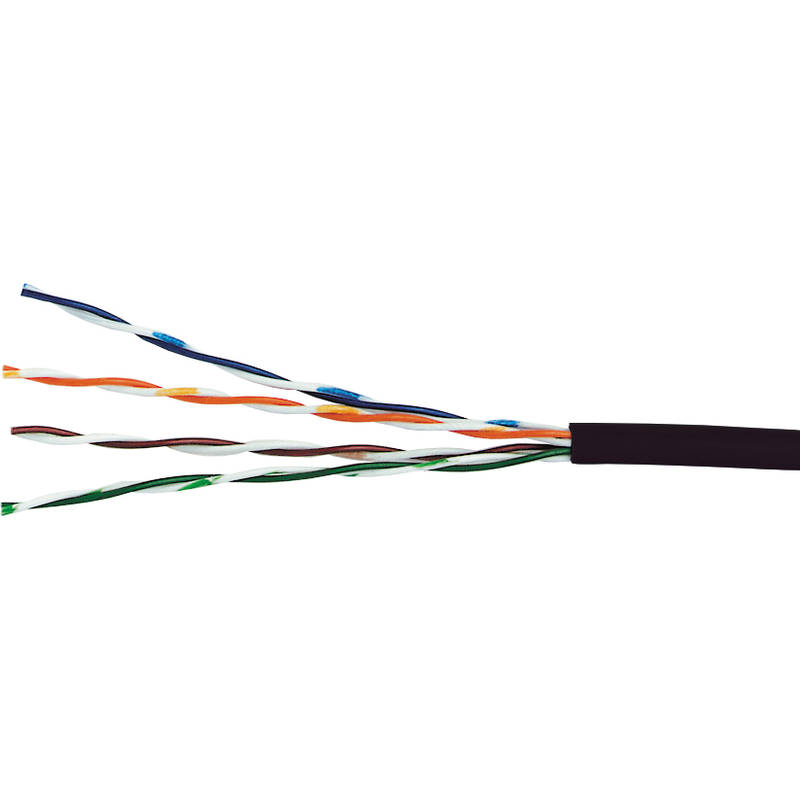

Excel Category 5e Patch Cable U/UTP PVC 305m Box - Black
Part Code: 100-084-305M
Excel Category 5e stranded conductor 4 pair UTP patch cable is highly flexible and easy to use. The cable is available in many colours allowing bespoke patch leads to be made using appropriate plugs.
- 24 AWG stranded cable
- Choice of colours
- Fast feed box
- 25 Year System Warranty
| Category | 5E |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath colour | Black |
| AWG-size | 24 |
| Specification core insulation | PE |
| Core identification | Colour |
| Outer sheath material | PVC |
| Halogen free (acc. EN 60754-1/2) | no |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. BS EN 61034-2) | no |
| Outer diameter approx. | 5.3 mm |
| Conductor category | Class 2 = stranded |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Conductor surface | Bare |
Key Features
- Category: 5E
- Overall screening: None
- Conductor screening: None
- Outer sheath colour: Black
- AWG-size: 24
- Specification core insulation: PE
