Excel Category 6A Cable F/FTP S-Foil Dca LS0H 500m Reel - Ice Blue

Part Code: 100-196

The Excel Category 6A Screened (F/FTP) cable takes the performance capabilities of copper infrastructure to new levels. The cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A/Augmented Category 6 component requirements. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet.

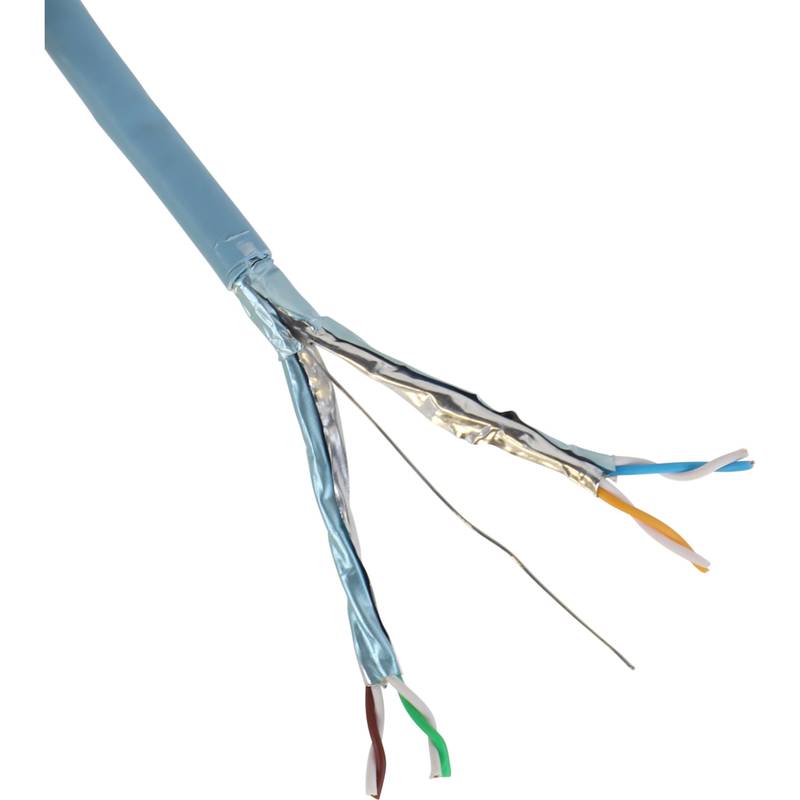

Each cable consists of two sets of two pairs are wrapped together in an "S" configuration with high quality, strong, aluminium/polyester foil tape providing screening for each pair. The "S" Foil configuration ensures separation of the pairs that ensures the performance. The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another, overall foil.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Category 6A
  • "S" foil screen
  • Specified to 500MHz
  • Sequential metre markings
  • Choice of colour
  • Euroclass Dca-s1a-d1-a1
  • Suitable for 10 Gigabit Ethernet applications
Category 6A (IEC)
Overall screening Foil
Conductor screening Foil
Outer sheath colour Ice Blue
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s1a
Euro class flaming droplets/particles according to EN 13501-6 d1
Euro class acidity according to EN 13501-6 a1
AWG-size 23
Specification core insulation PE
Core identification Colour
Outer sheath material Copolymer, thermoplastic (LS0H)
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 6.9 mm
Installation Temperature Range 0...60 °C
Operating Temperature Range -20...60 °C
NVP value 75 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 6A (IEC)
  • Overall screening: Foil
  • Conductor screening: Foil
  • Outer sheath colour: Ice Blue
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s1a
