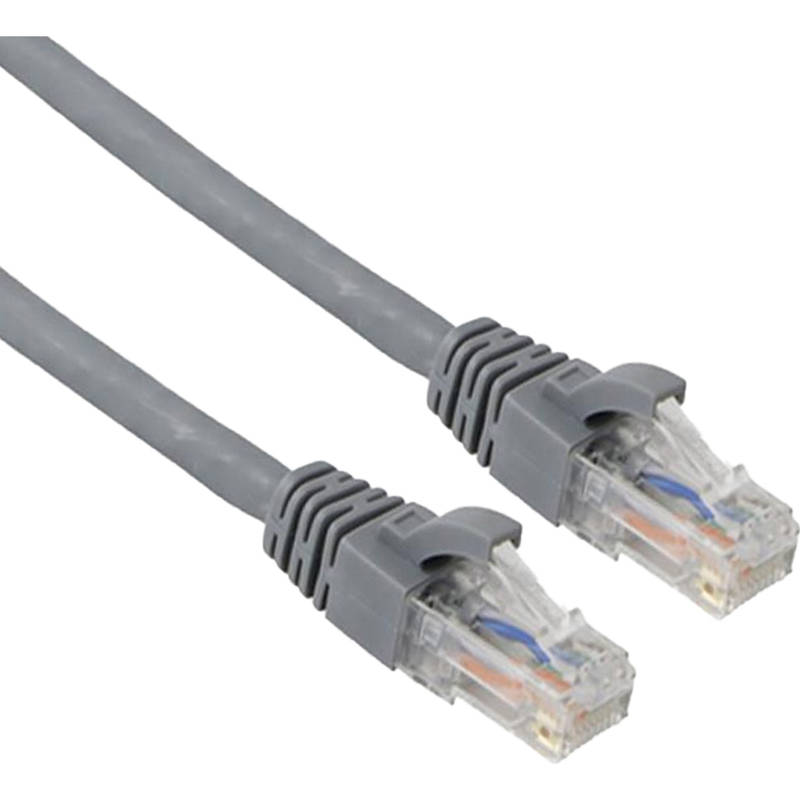

Excel Category 6A Patch Lead U/UTP Unshielded LS0H Blade Booted 2m - Grey

Part Code: 100-501

Excel Category 6A (Augmented Category 6) patch leads consist of 4 twisted pairs of 26 AWG stranded copper wires. These pairs are then cabled together, with different lay lengths to ensure optimum performance.

Staggered pin RJ45 plugs terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.

  • Category 6A
  • Specified to 500MHz
  • Suitable for 10 Gigabit Ethernet application
  • EC verified
  • Blade style 'slimline' moulded strain relief boot with clip protector
  • Choice of length and colour
  • LS0H outer sheath
Cable type U/UTP
Category 6A (IEC)
Length 2 m
Type of connector connection 1 RJ45 8(8)
Type of connector connection 2 RJ45 8(8)
Outer sheath colour Grey
Strain relief boot Moulded-on
Lockable no
Strain relief boot colour Grey
Flame retardant version yes
Halogen free yes
Cable construction 1x4
AWG-size 26
Pin assignment 1:1

Key Features

  • Cable type: U/UTP
  • Category: 6A (IEC)
  • Length: 2 m
  • Type of connector connection 1: RJ45 8(8)
  • Type of connector connection 2: RJ45 8(8)
  • Outer sheath colour: Grey
