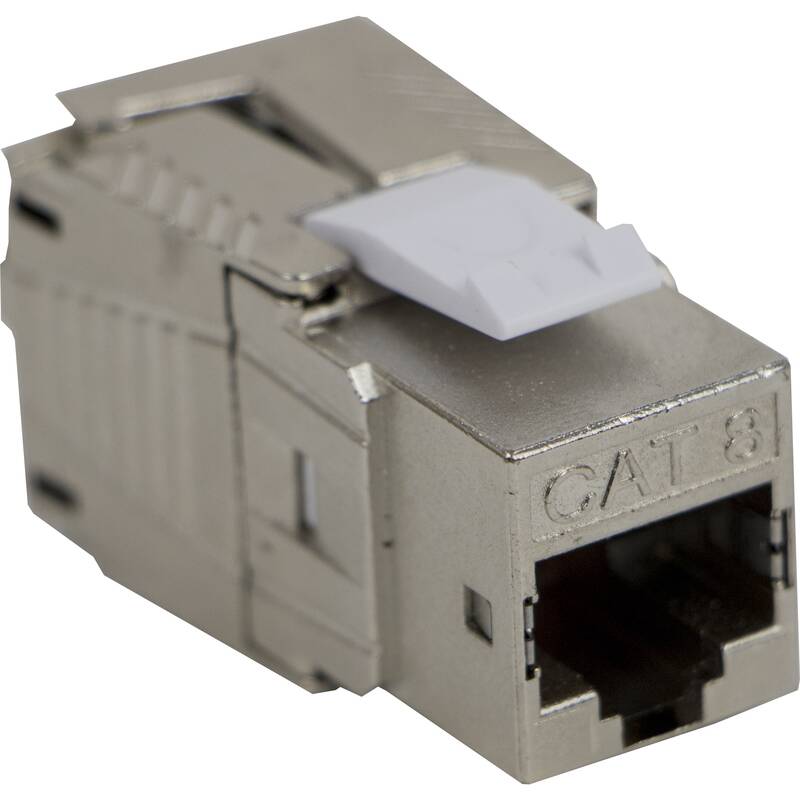

Excel Category 8 Screened butterfly tooless jack

Part Code: 100-801

The Excel Category 8 cabling infrastructure has been designed to support short-distance (between 5 and 30 meters) runs of 25GBase-T or 40GBase-T transmission. A choice of compatible Patch Panel frames with either 16 or 24 port density in both black and chrome are available. The socket itself is housed in a high quality zinc die cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the ‘butterfly’ together to complete the termination.

  • 25 Year System warranty
  • 360˚ Screen die cast housing
  • Toolless termination design
  • RoHS, Reach/SVHC compliant
Model Jack
Type of connector RJ45 8(8)
Shielded yes
Category 8
Requires termination tool no
Suitable for round cable yes
Colour Silver
AWG-range 22...26

Key Features

  • Model: Jack
  • Type of connector: RJ45 8(8)
  • Shielded: yes
  • Category: 8
  • Requires termination tool: no
  • Suitable for round cable: yes
