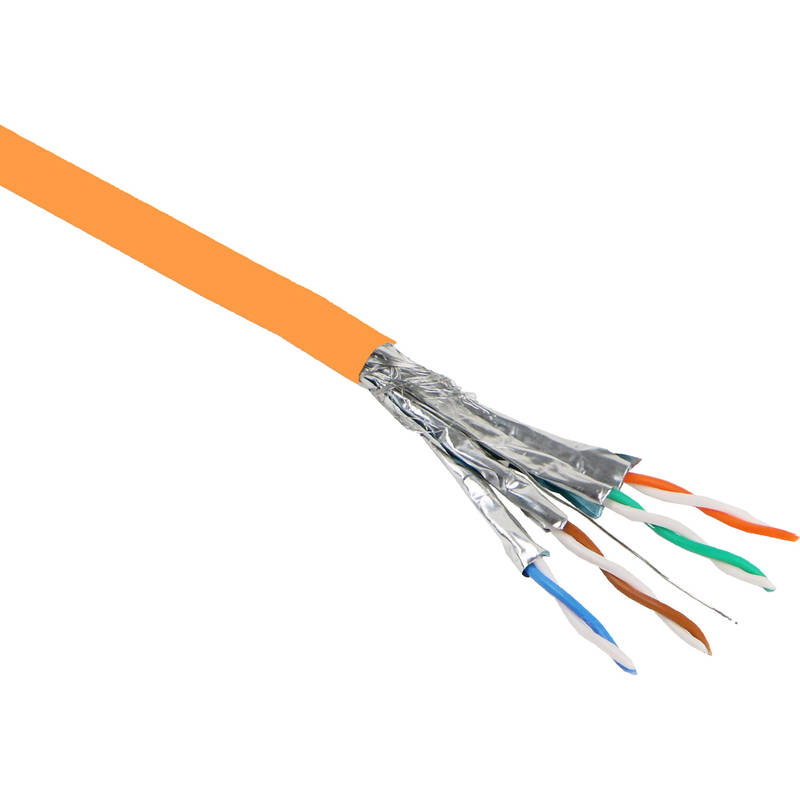

Excel Category 6A Cable S/FTP Dca LS0H 500m Reel - Orange

Part Code: 100-914-ORG

The Excel Category 6A screened S/FTP cable is designed and manufactured to meet and exceed the ISO, Cenelec and TIA standards. This delivers Class Ea link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is 3rd Party Component Verified.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Category 6A
  • Individual foil pairs with overall braid screen
  • 500 metre reel
  • Tested to 550MHz
  • Low Smoke Zero Halogen jacket
  • Euroclass Dca-s2-d2-a2
Category 6A (IEC)
Overall screening Braiding
Conductor screening Foil
Outer sheath colour Orange
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s2
Euro class flaming droplets/particles according to EN 13501-6 d2
Euro class acidity according to EN 13501-6 a2
AWG-size 23
Specification core insulation PE
Core identification Colour
Outer sheath material Copolymer, thermoplastic (LS0H)
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 7.5 mm
Operating Temperature Range -20...70 °C
NVP value 74 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 6A (IEC)
  • Overall screening: Braiding
  • Conductor screening: Foil
  • Outer sheath colour: Orange
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s2
