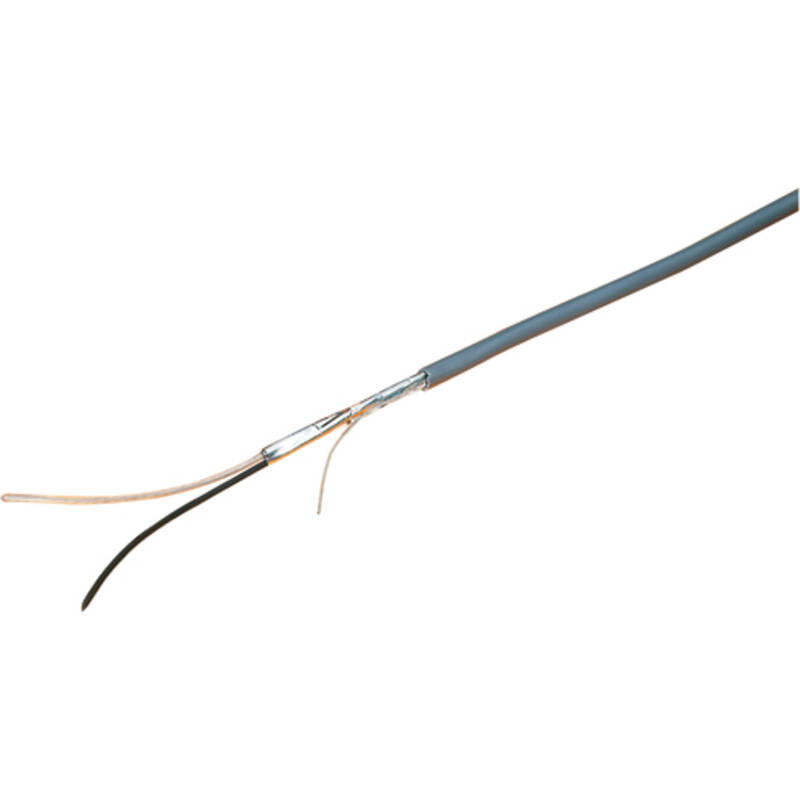

Excel 1 Pair 18AWG Cable LS0H Fca Grey - 500 Metre Reel
Part Code: 1801P0FP
Multipair cables manufactured and designed for sound broadcast, audio and instrumentation, tinned copper conductors.
The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.
- Single pair cable
- Voltage rating 300V, temperature rating 60°C
- Choice of AWG size
- LS0H Sheath
- 25 Year system warranty
- Euroclass Fca
| Category | Single-pair |
| Overall screening | Foil |
| Outer sheath colour | Grey |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| AWG-size | 18 |
| Specification core insulation | PE |
| Core identification | Colour |
| Outer sheath material | PVC |
| Diameter of conductor | 0.25 mm |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. BS EN 61034-2) | yes |
| Outer diameter approx. | 5.64 mm |
| Operating Temperature Range | -20...80 °C |
| Conductor category | Class 2 = stranded |
| Total number of cores | 2 |
| Stranding element | Pairs |
| Conductor surface | Tinned |
Key Features
- Category: Single-pair
- Overall screening: Foil
- Outer sheath colour: Grey
- Reaction-to-fire class according to EN 13501-6: Fca
- AWG-size: 18
- Specification core insulation: PE
