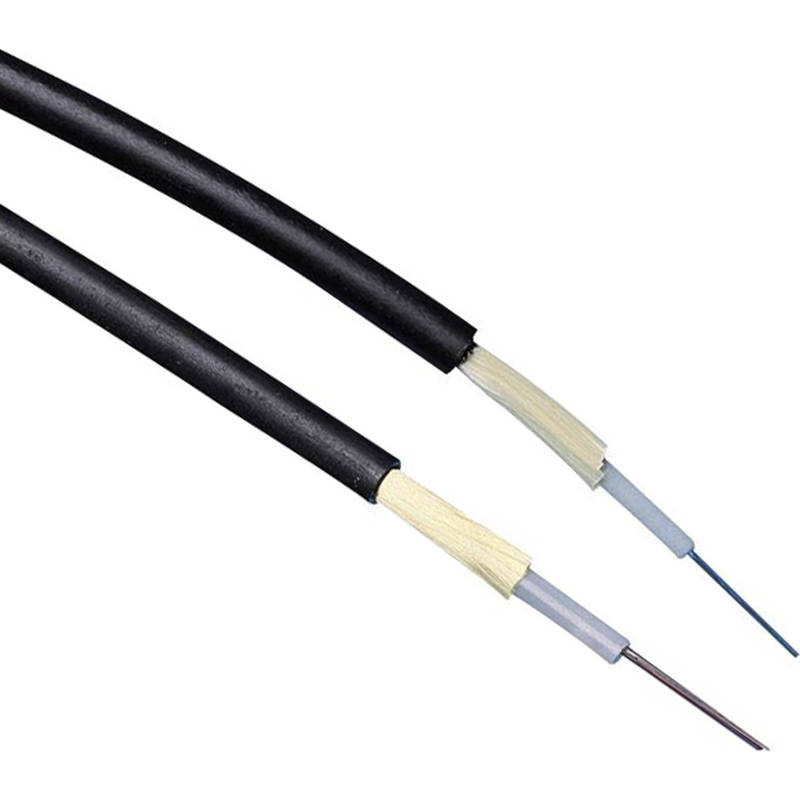

Enbeam OM1 Multimode 62.5/125 16 Core Fibre Optic Cable Loose Tube Dca - Black

Part Code: 200-081

Excel OM1 62.5/125μm loose tube optical fibre cables have been designed specifically for internal and external applications. These compact, lightweight cables are extremely flexible and are quick and easy to install.

The cables are constructed around a gel filled (non‐dripping and silicon free) tube containing up to 24 colour coded 250μm primary coated fibres. This tube is covered with an E-Glass strength member.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Duct grade rodent resistant
  • Cut to length service
  • Sequentially metre marked
  • 25 Year system warranty
  • Euroclass Dca-s2-d0-a1
Number of Cores 16
Type of tube Loose tube
Number of fibres per tube 16
Fibre type Multi mode 62.5/125
Category OM1
Armouring no
Rodent resistant yes
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Black
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s2
Euro class flaming droplets/particles according to EN 13501-6 d0
Euro class acidity according to EN 13501-6 a1
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 6 mm

Key Features

  • Number of Cores: 16
  • Type of tube: Loose tube
  • Number of fibres per tube: 16
  • Fibre type: Multi mode 62.5/125
  • Category: OM1
  • Armouring: no
