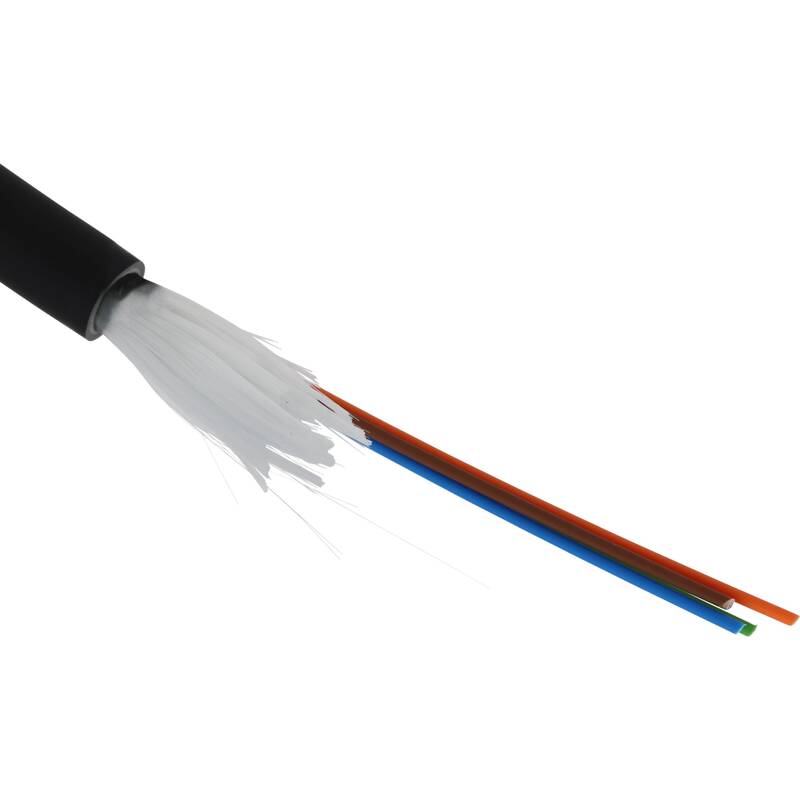

Enbeam OS2 Singlemode 9/125 4 Core Fibre Optic Cable Tight Buffered Cca - Black

Part Code: 205-320

Excel OS2 9/125μm tight buffered optical fibre cables have been designed specifically for internal and external applications. The singlemode fibre is G.652.D compliant low water peak grade and offers OS2 performance and OS1 backwards compatibility. These compact, lightweight cables are extremely flexible and are quick and easy to install.

The cables are constructed around swellable reinforced yarns as common strength members containing up to 24 colour coded 250µm tight buffered fibres, covered with a flame retardant, low smoke zero halogen, outer sheath.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Duct grade rodent resistant
  • Sequentially metre marked
  • Cut to length service
  • 25 Year system warranty
  • Euroclass Cca-s1a-d0-a1
Number of Cores 4
Type of tube Tight
Fibre type Single mode 9/125
Category OS2
Armouring no
Rodent resistant yes
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Black
Reaction-to-fire class according to EN 13501-6 Cca
Smoke development class according to EN 13501-6 s1a
Euro class flaming droplets/particles according to EN 13501-6 d0
Euro class acidity according to EN 13501-6 a1
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 6.5 mm

Key Features

  • Number of Cores: 4
  • Type of tube: Tight
  • Fibre type: Single mode 9/125
  • Category: OS2
  • Armouring: no
  • Rodent resistant: yes
