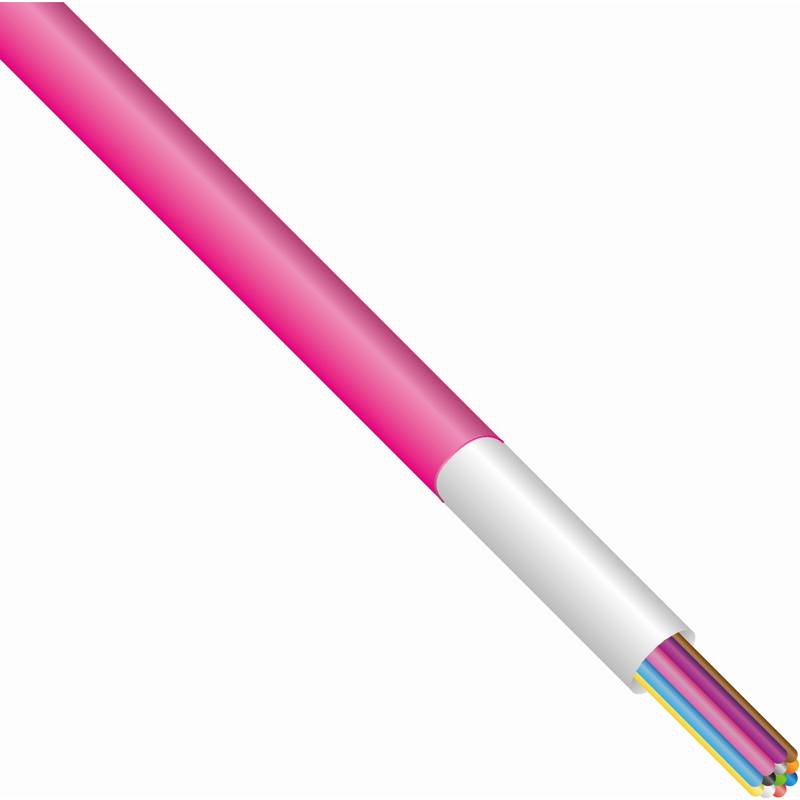

Enbeam 12 Fibre EPFU Unit - OM4 Multimode blown fibre

Part Code: 208-819

Enbeam Enhanced Performance Fibre Units (EPFU) are designed specifically for blown-fibre applications and are optimised for installation within our range of blown-fibre tubes. The fibres are contained within a soft acrylate layer which cushions the fibres. This layer is coated with a hard layer for strength and finally a low-friction coating to ensure low drag and maximise blowing distances within the tubes. The acrylate coatings are easy to remove to expose the 250-micron primary-coated fibres for quick splicing. The fibres are colour-coded according to TIA-598-C.

The fibre units are available in OM3, OM4 and OS2.

  • Available in OM3/OM4/OS2
  • Bend Insensitive Fibres
  • TIA-598-C Colour coded
  • 25 Year system warranty
  • Available in 4, 8 & 12-fibre bundles
  • Easy strip
  • Gel free Dielectric design
  • Coated for improving blowing performance
  • Germanium Silica based
Number of Cores 12
Fibre type Multi mode 50/125
Category OM4
Outer sheath colour Heather Violet
Outer diameter approx. 1.65 mm
Blown system yes

Key Features

  • Number of Cores: 12
  • Fibre type: Multi mode 50/125
  • Category: OM4
  • Outer sheath colour: Heather Violet
  • Outer diameter approx.: 1.65 mm
  • Blown system: yes
