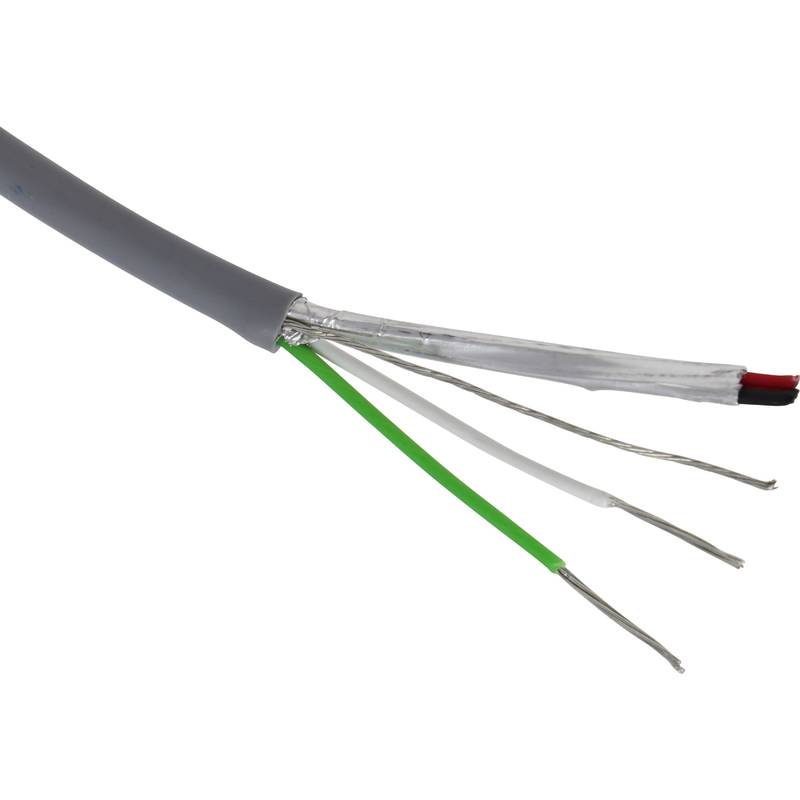

Excel Grey 2 Pair Cable - 100 Metre Reel

Part Code: 2202PIFPP100

Multipair cables manufactured with 7/-25mm tinned copper conductor, polypropylene insulated. Conductor resistance 77.8 Ohms/Km, voltage rating 30V, temperature rating 80°C. Suitable for RS232, audio and broadcast applications.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Individually Screened pairs
  • 22AWG Stranded cores
  • Individual drain wire per pair
  • PVC Jacket
  • Euroclass Eca
Category Multipair
Overall screening Foil
Conductor screening Foil
Outer sheath colour Grey
Reaction-to-fire class according to EN 13501-6 Eca
AWG-size 22
Specification core insulation PE
Core identification Colour
Outer sheath material PVC
Diameter of conductor 0.25 mm
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Outer diameter approx. 4.19 mm
Operating Temperature Range -20...80 °C
Conductor category Class 2 = stranded
Total number of cores 4
Stranding element Pairs
Conductor surface Tinned

Key Features

  • Category: Multipair
  • Overall screening: Foil
  • Conductor screening: Foil
  • Outer sheath colour: Grey
  • Reaction-to-fire class according to EN 13501-6: Eca
  • AWG-size: 22
