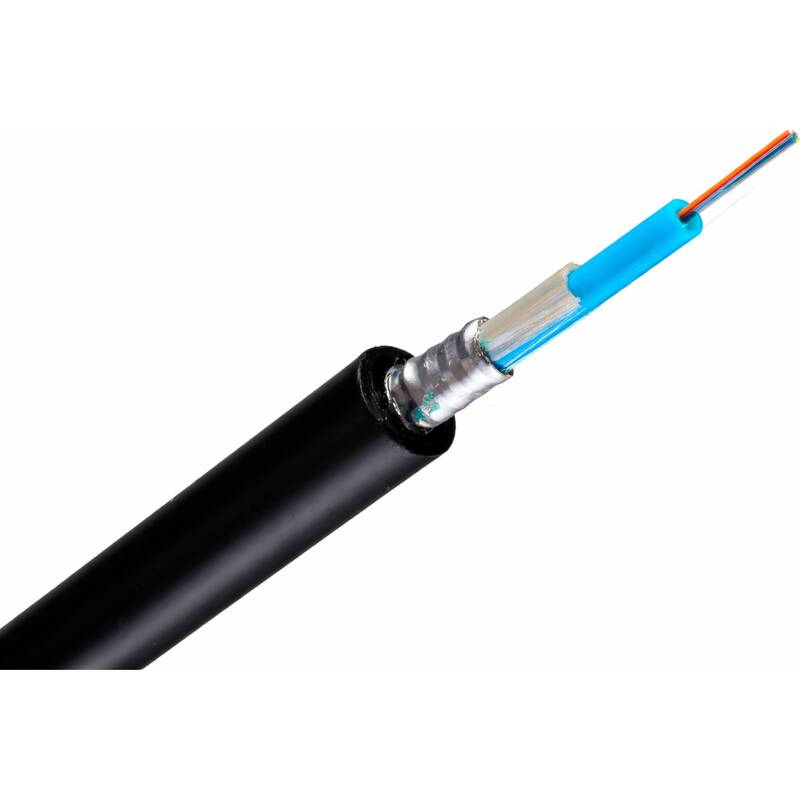

Enbeam OS2 Singlemode 9/125 24 Core Armoured CST Fibre Optic Cable Loose Tube B2ca - Blue

Part Code: 295-309

Excel corrugated steel tape (CST) OS2 9/125μm armoured loose tube optical fibre cables have been designed specifically for applications requiring a high degree of mechanical protection.

The singlemode fibre is G.652.D compliant low water peak grade and offers OS2 performance and OS1 backwards compatibility. These compact, lightweight cables are extremely rugged, provide rodent resistance and are quick and easy to install.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Duct grade ‐ rodent resistant
  • Sequentially metre marked
  • UV Resistant
  • Cut to length service
  • 25 Year system warranty
  • Euroclass B2ca-s1a-d0-a1
Number of Cores 24
Type of tube Loose tube
Number of fibres per tube 24
Fibre type Single mode 9/125
Category OS2
Armouring yes
Rodent resistant yes
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Blue
Reaction-to-fire class according to EN 13501-6 B2ca
Smoke development class according to EN 13501-6 s1a
Euro class flaming droplets/particles according to EN 13501-6 d0
Euro class acidity according to EN 13501-6 a1
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 50399
Outer diameter approx. 9.5 mm

Key Features

  • Number of Cores: 24
  • Type of tube: Loose tube
  • Number of fibres per tube: 24
  • Fibre type: Single mode 9/125
  • Category: OS2
  • Armouring: yes
