7208C
Image 1 of 1

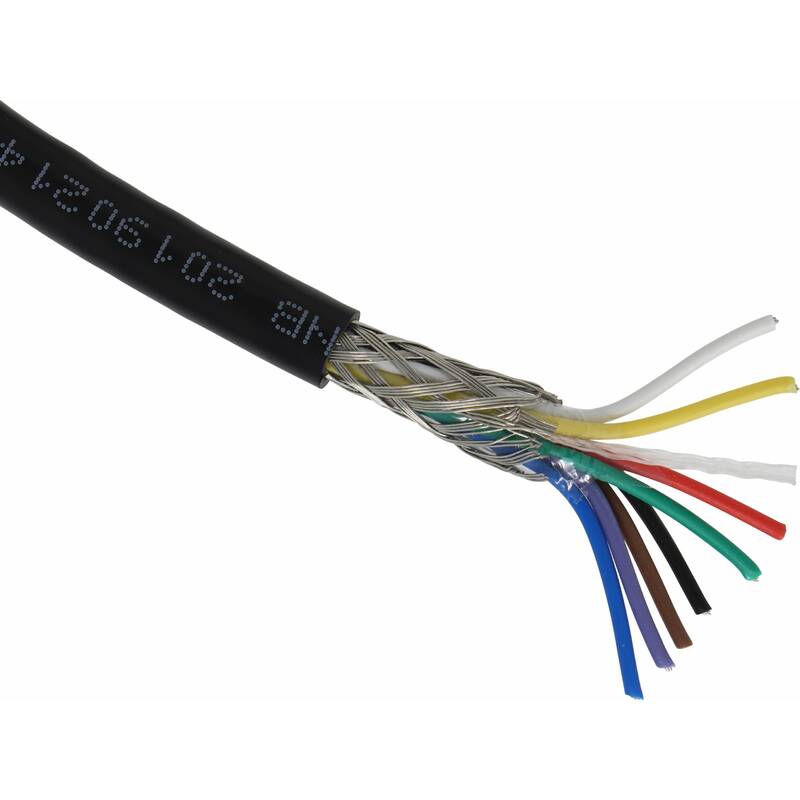

Excel Screened Multicore Cable - 8 Core, 7x0.2 - per metre
Part Code: 7208C
Excel multicore 7/0.2 screened cables are manufactured in accordance with the Defence Standard 61‐12, part 4 specifications. They should not be used for direct connection of equipment to mains power supplies, but are ideal for the interconnection of electronic equipment and instruments.
The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.
- Available in 3-36 core options
- Screened
- Choice of conductor size
- Cut to length service
- 25 Year system warranty
- Euroclass Eca
| Category | Multicore |
| Overall screening | Braiding |
| Outer sheath colour | Black |
| AWG-size | 24 |
| Core identification | Rings |
| Outer sheath material | PVC |
| Diameter of conductor | 0.2 mm |
| Halogen free (acc. EN 60754-1/2) | no |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. BS EN 61034-2) | no |
| Outer diameter approx. | 6.1 mm |
| Operating Temperature Range | 0...80 °C |
| Conductor category | Class 2 = stranded |
| Total number of cores | 8 |
| Stranding element | Cores |
| Core insulation | PVC |
| Conductor surface | Tinned |
Key Features
- Category: Multicore
- Overall screening: Braiding
- Outer sheath colour: Black
- AWG-size: 24
- Core identification: Rings
- Outer sheath material: PVC
