DS-2CD2543G0-IS(2.8MM)

DS-2CD2543G0-IS(2.8MM)

Image 1 of 1

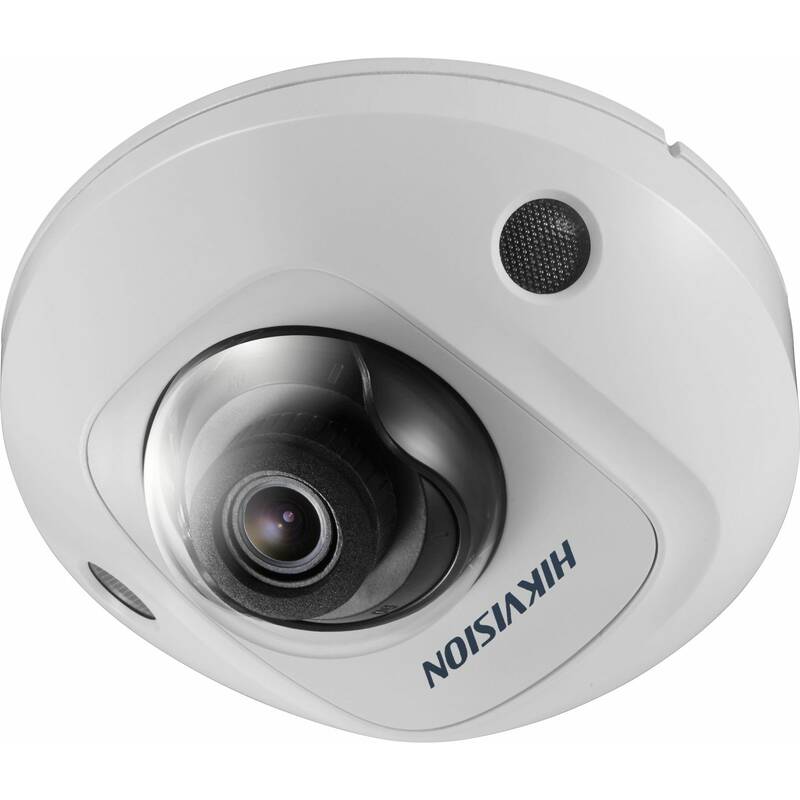

Hikvision IP Mini Dome 4 Megapixel Fixed 10m IR PoE

Part Code: DS-2CD2543G0-IS(2.8MM)

  • 2688 × 1520@30fps
  • IR: up to 10 m
  • H.265, H.265+
  • 120dB WDR
  • Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • PoE
  • EXIR
  • Wi-Fi (Optional)
Model Mini Dome
Area of application Outdoor
Transmission TCP/IP
Power over Ethernet 802.3 af (PoE)
Number of pixels (Megapixel) 4
Focal range 2.8...2.8 mm
Power consumption 10 W
Colour White
Wireless no
With lens yes
With IR lamp yes
Max. infrared reach 10 m
Number of digital inputs 1
Number of digital outputs 1
Number of audio inputs 2
Number of audio outputs 1
Vandal-resistant yes
IP-rating IP66
IK Rating IK08
Built-in Analytics yes
Horizontal field of view 98...98 °
Vertical field of view 55...55 °
Diameter 110 mm
Depth 56.4 mm
ONVIF-compliant yes
Mounting method Wall/ceiling
Property picture system Colour

Key Features

  • Model: Mini Dome
  • Area of application: Outdoor
  • Transmission: TCP/IP
  • Power over Ethernet: 802.3 af (PoE)
  • Number of pixels (Megapixel): 4
  • Focal range: 2.8...2.8 mm
