DS-96128NI-I16

DS-96128NI-I16

Image 1 of 1

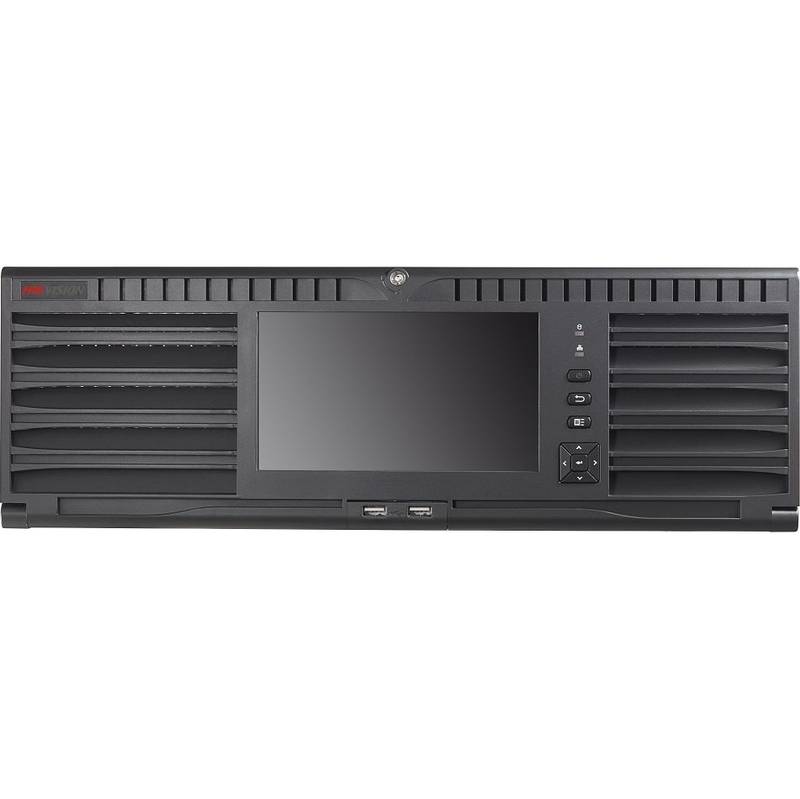

Hikvision 128 ch NVR 768Mbps bit rate input Shell only 3U VCA research

Part Code: DS-96128NI-I16

  • Up to 128 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264/MPEG4/MJPEG video formats
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 1 VGA interfaces16 HDD can be used for continuous video recording
  • Compatible with third-party network cameras
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Recording type Digital
Model Network Video Recorder (NVR)
Number of hard disc bays 16
Hot-swappable hard disk capability yes
Number of LAN-Ports 4
Power over Ethernet None
Built-in Analytics yes
RAID 0 capable yes
RAID 1 capable yes
RAID 5 capable yes
RAID 6 capable yes
Height 146 mm
Width 442 mm
Depth 494 mm
Power consumption 140 W
Redundant power supply yes

Key Features

  • Recording type: Digital
  • Model: Network Video Recorder (NVR)
  • Number of hard disc bays: 16
  • Hot-swappable hard disk capability: yes
  • Number of LAN-Ports: 4
  • Power over Ethernet: None
