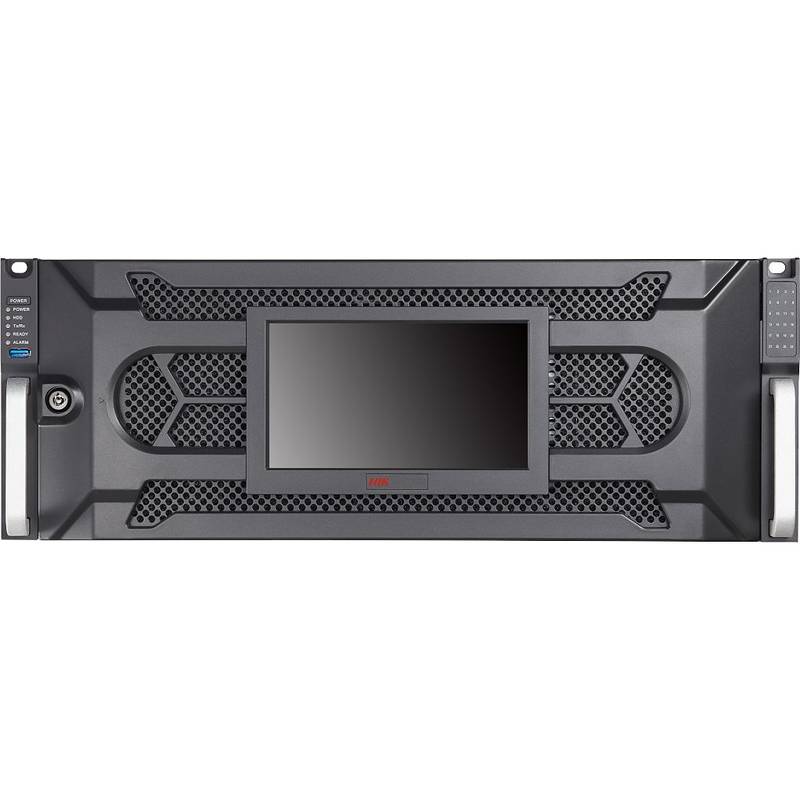

Hikvision 256-channel 4U 4K Super NVR

Part Code: DS-96256NI-I24

  • Up to 256 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264/MPEG4/MJPEG video formats
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 1 VGA interfaces
  • 24 HDD can be used for continuous video recording
  • Compatible with third-party network cameras
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye cameraAdvanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Recording type Digital
Model Network Video Recorder (NVR)
Number of pre-licensed cameras 256
Processor type Other
Number of hard disc bays 24
Number of preinstalled hard discs 0
Hot-swappable hard disk capability yes
Number of LAN-Ports 4
Operating systems Linux
Max. data transmission rate 1536 Mbit/s
RAID 0 capable yes
RAID 1 capable yes
RAID 5 capable yes
RAID 6 capable yes
Construction type of device 482.6 mm (19 inch) mounting rack
Power consumption 140 W

Key Features

  • Recording type: Digital
  • Model: Network Video Recorder (NVR)
  • Number of pre-licensed cameras: 256
  • Processor type: Other
  • Number of hard disc bays: 24
  • Number of preinstalled hard discs: 0
