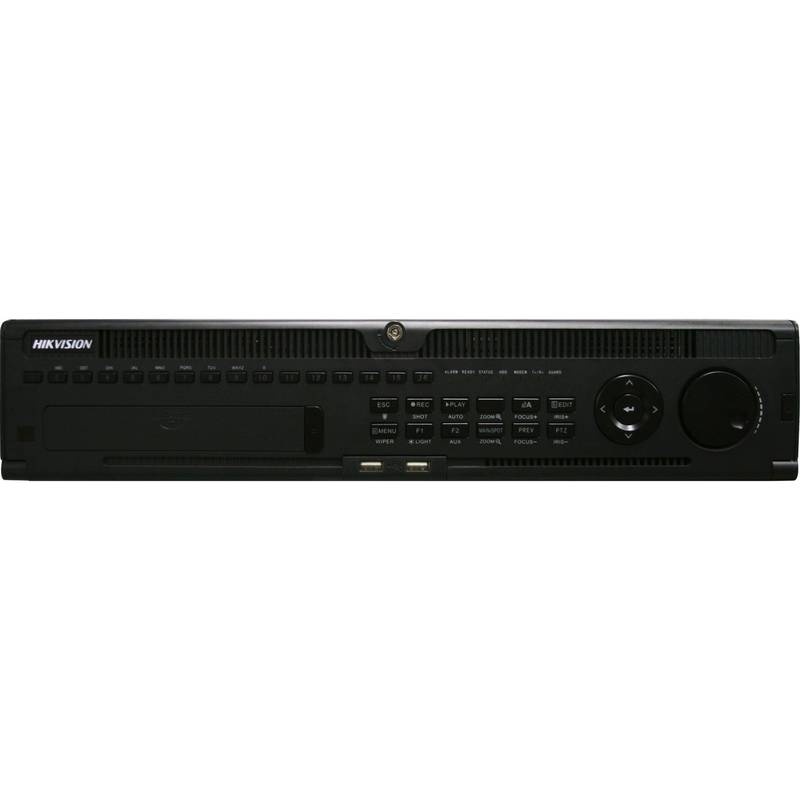

Hikvision 32-channel 320Mbps 8 SATA 2U case 19in No CVBS

Part Code: DS-9632NI-I8

  • Up to 32 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Compatible with third-party network cameras
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Recording type Digital
Model Network Video Recorder (NVR)
Number of pre-licensed cameras 32
Processor type Intel Xeon
Number of hard disc bays 8
Hot-swappable hard disk capability yes
Number of LAN-Ports 2
Built-in Analytics yes
RAID 0 capable yes
RAID 1 capable yes
RAID 5 capable yes
RAID 6 capable yes
Height 90 mm
Width 445 mm
Depth 470 mm
Power consumption 200 W
Redundant power supply no

Key Features

  • Recording type: Digital
  • Model: Network Video Recorder (NVR)
  • Number of pre-licensed cameras: 32
  • Processor type: Intel Xeon
  • Number of hard disc bays: 8
  • Hot-swappable hard disk capability: yes
