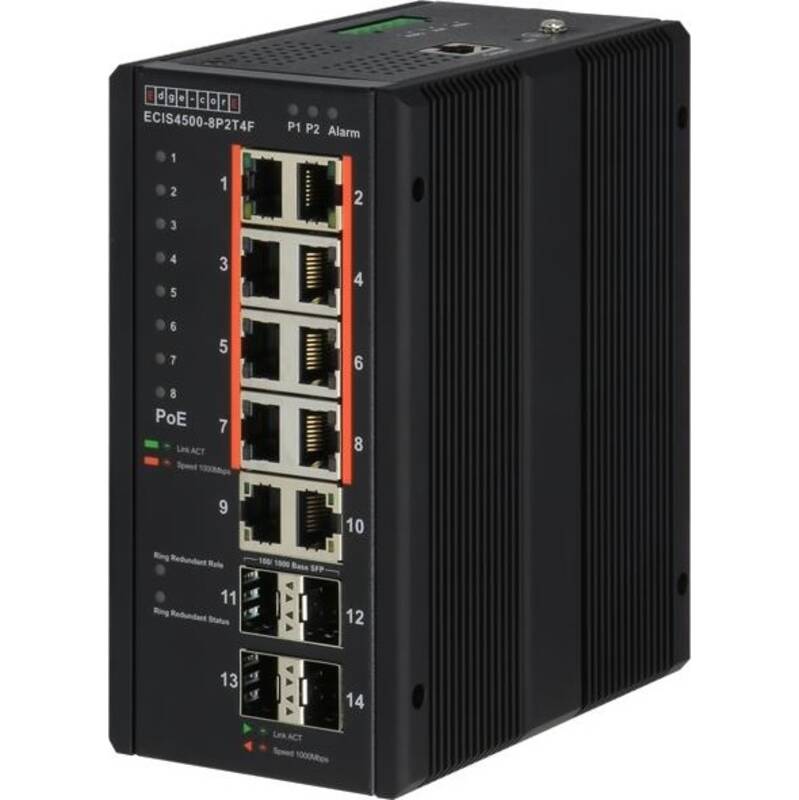

8 Port 240W PoE+ Gigabit Industrial Layer 2 Switch c/w 2 GE RJ45 & 4 SFP slots

Part Code: ECIS4500-8P2T4F

The Edgecore ECIS4500 PoE series are managed industrial PoE+ Gigabit Ethernet switches. The switches comply to the IEEE 802.3 af/at standard and are able to deliver up to 30 watts of power per port along with data over standard Ethernet cabling. The switches can be used to power any IEEE 802.3af/at-compliant PoE PD devices, and include PoE power management features that ease the deployment effort and PoE power budget planning, as well as eliminating the need for additional wiring to reach a power source.

  • 8/4 10/100/1000BASE-TX PoE ports plus 4/2 100FX/1000BASE-F SFP slots
  • IEEE 802.3af /IEEE 802.3at Power Over Ethernet Compliant
  • Ultra PoE Supported (Only ECIS4500-8P2T4F for Port 1& 2)
  • L2 Wire-speed Switching Engine
  • Network redundant LACP, Spanning tree STP, RSTP & MSTP
  • E-Ring Technology: fast ring fail-over protection (< 20 ms)
  • CLI/Web/SNMP management interfaces
  • Dual power input & reverse power protection
  • DIN-Rail and Wall mounting option
Manageability Web-managed
Number of ports 10/100/1000 Mbps RJ45 10
Number of other ports 1
Power over Ethernet 802.3 at (PoE+)
Max. PoE power 240 W
Layer 2 yes
Switching capacity 28 Gbps
Height 154 mm
Width 77 mm
Depth 128 mm
Mounting method DIN rail (top hat rail)
Max. power consumption 265 W
Number of ports 100/1000 Mbps SFP 4

Key Features

  • Manageability: Web-managed
  • Number of ports 10/100/1000 Mbps RJ45: 10
  • Number of other ports: 1
  • Power over Ethernet: 802.3 at (PoE+)
  • Max. PoE power: 240 W
  • Layer 2: yes
