FE L2 48 x RJ45 FE Base-T + 4 GE Combo (RJ45 / SFP FE/GE)

Part Code: ECS3510-52T

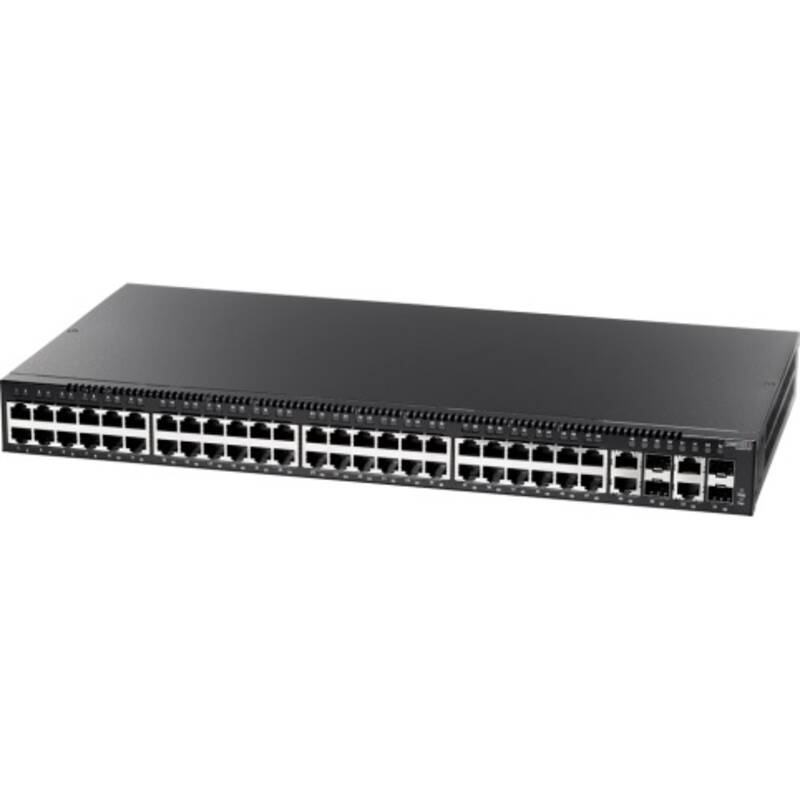

The Edge-Core ECS3510-52T is a high-performance Fast Ethernet Layer 2/4 switch featuring 52 ports; 48 10/100Base-TX ports and 4 combo Gigabit Ethernet RJ-45/SFP (Small Form Factor Pluggable ) ports. It is ideal for desktop Fast Ethernet connectivity and wiring closet installations. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security and advanced QoS to the network edge, while maintaining simplicity of management.

  • Performance and Scalability with 17.6 Gbps switching capacity
  • Supports G.8032 Ethernet Ring Protection Switching, with the ability for the network to detected and recover from incidents without impacting users
  • Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, Multicast VLAN Registration (MVR), IGMP snooping, voice VLAN feature and IEEE 802.1Q-in-Q VLAN Tag.
  • Comprehensive QoS - Traffic is prioritized according to 802.1p, DSCP, IP precedence and TCP/UDP port number, giving optimal performance to real-time applications such as voice and video.
  • Enhanced Security with Port security limits, IEEE 802.1X port-based or MAC-based access control, Access Control Lists (ACLs), TACACS+ Authentication for applications, Private VLANs and Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
  • Simple Management with an idustry-standard command-line interface (CLI), IP Source Guard, DHCP snooping and DHCP Option 82.
Manageability Web-managed
Maximum number of concurrent connections 52
Number of ports 10/100 Mbps RJ45 48
Number of combination-Ports RJ45/SFP 4
Power over Ethernet Not applicable
Layer 2 yes
Stackable no
Switching capacity 17.6 Gbps
Packet buffer 8 MB
Height 43 mm
Width 440 mm
Depth 230 mm
Mounting method 19 inch mounting

Key Features

  • Manageability: Web-managed
  • Maximum number of concurrent connections: 52
  • Number of ports 10/100 Mbps RJ45: 48
  • Number of combination-Ports RJ45/SFP: 4
  • Power over Ethernet: Not applicable
  • Layer 2: yes
