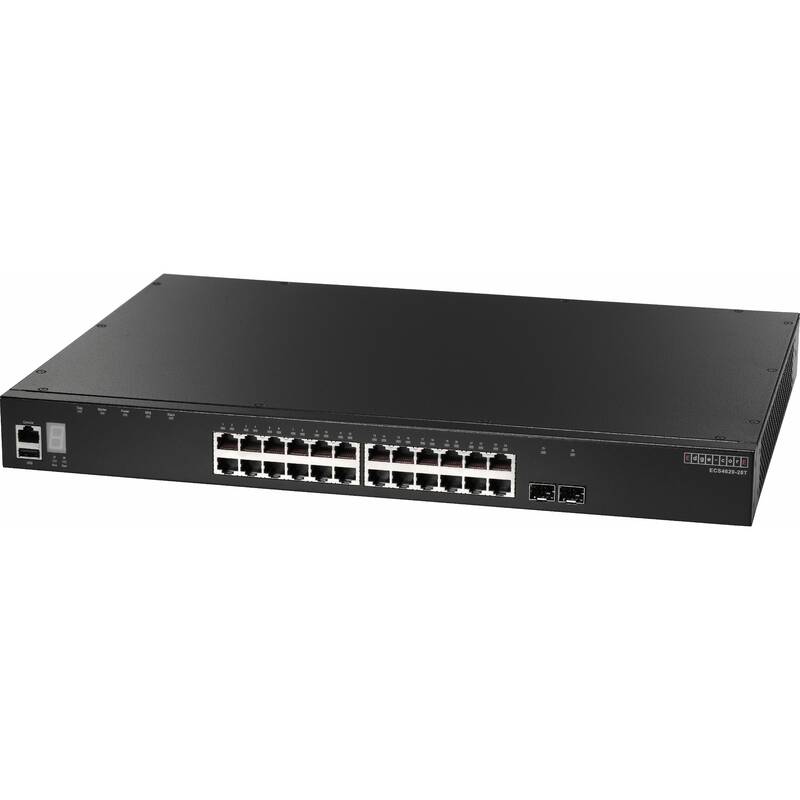

24 Port Gigabit Distribution Layer 3 Stackable Switch c/w 2 SFP+ 10G slots

Part Code: ECS4620-28T EUK

Edgecore ECS4600 series switches feature two stacking ports for hardware stacking, with up to 320Gbps of throughput. Any combination of 4600 Series units can be stacked up to 8 units high or to a maximum of 400 ports. The stack acts as a single switching unit that is managed by a master switch, elected from one of the member switches. The master switch automatically creates and updates all the switching and optional routing tables. A working stack can add new members or delete old ones without service interruption (for small/medium scale, Layer 3 IP fabric for large/hyper scale deployment, with Software-Defined Networking, SDN, support for cloud infrastructures).

The Distribution Networks series is ideal for service provider edge aggregation, enterprise comms racks, data centre aggregation and network core deployment. These switches bring a high level of security and traffic control to the edge of your network. They provide high performance, resilient stacking, wire speed Layer 2 switching and Layer 3 routing, comprehensive QoS and advanced security to deliver the scalability and resiliency to increase your company’s productivity while reducing operational costs.

  • ITU-T G.8032 Ethernet Ring Protection Switch provides redundant path with fast convergence time
  • IPv4 Redundancy
  • OSPFv3
  • Equal cost multipath routing (ECMP)
  • DiffServ
  • Two rate three colour marking
  • EAPOL transparent
  • VLAN assignment
  • QoS assignment
  • DoS
  • Dynamic ARP Inspection
  • DHCPv6 snooping
  • sFlow
  • IPv4/IP6 L3 routing capabilities
  • Lifetime Advance Replacement Warranty
Manageability Fully managed
Maximum number of concurrent connections 26
Number of ports PoE 0
Number of ports 10/100/1000 Mbps RJ45 24
Number of combination-Ports RJ45/SFP 0
Number of ports 10 Gbps SFP 2
Number of module slots 1
Layer 3 yes
Stackable yes
Switching capacity 128 Gbps
Packet buffer 128 MB
Height 44 mm
Width 440 mm
Depth 315 mm
Mounting method 19 inch mounting
Power supply Single
Max. power consumption 35 W
Number of ports 100/1000 Mbps SFP 0

Key Features

  • Manageability: Fully managed
  • Maximum number of concurrent connections: 26
  • Number of ports PoE: 0
  • Number of ports 10/100/1000 Mbps RJ45: 24
  • Number of combination-Ports RJ45/SFP: 0
  • Number of ports 10 Gbps SFP: 2
