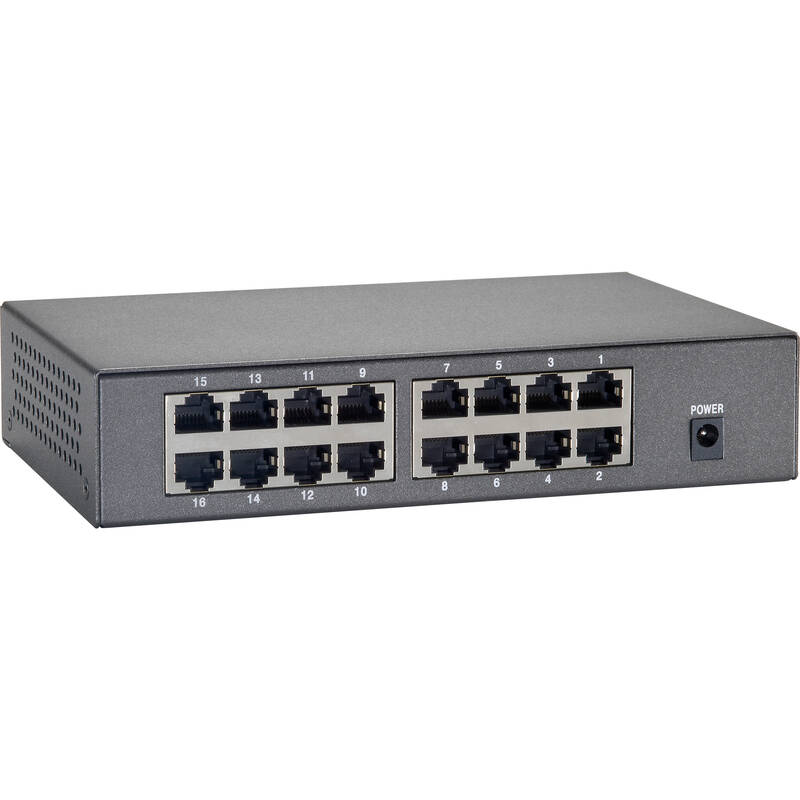

16-Port Fast Ethernet PoE Switch, 120W

Part Code: FEP-1600

FEP-1600 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1600 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • PoE on/off control per port by dip switches
  • Simple Plug and Play installation
Manageability Unmanaged
Maximum number of concurrent connections 16
Number of ports PoE 16
Number of ports 10/100 Mbps RJ45 16
Power over Ethernet 802.3 at (PoE+)
Max. PoE power 112 W
Height 38 mm
Width 188 mm
Depth 118 mm
Mounting method Surface mounted (plaster)

Key Features

  • Manageability: Unmanaged
  • Maximum number of concurrent connections: 16
  • Number of ports PoE: 16
  • Number of ports 10/100 Mbps RJ45: 16
  • Power over Ethernet: 802.3 at (PoE+)
  • Max. PoE power: 112 W
