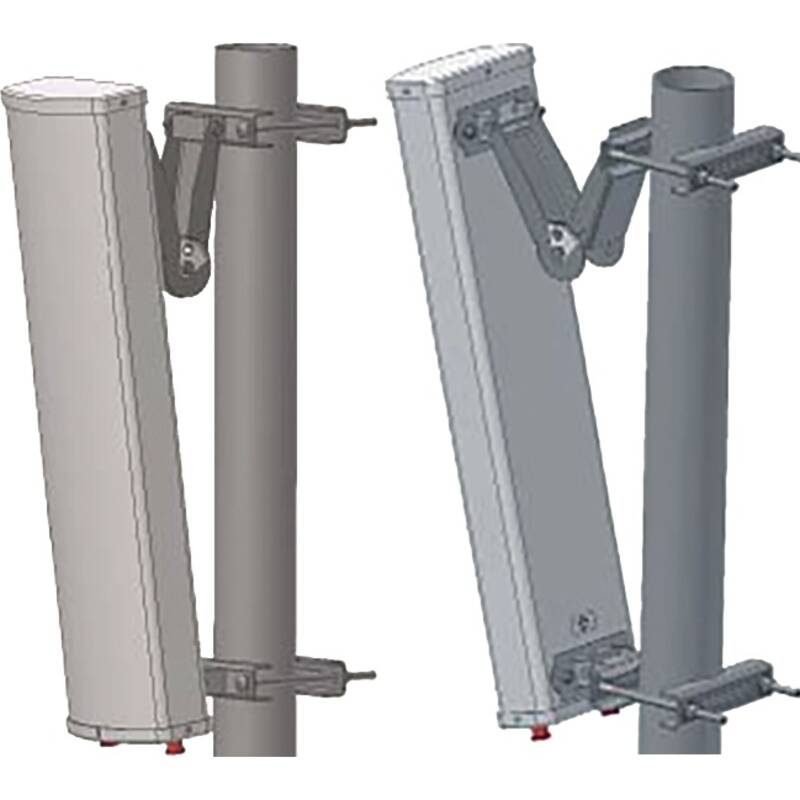

Sector antenna with 90 degreee angle

Part Code: FM-SECTOR-90

This antenna is designed to cover frequencies from 4.9 to 5.9 GHz. It off ers excellent port to port isolation of 30 dB typical, with a VSWR of less than 1.5 in a rugged, off -white UV resistant radome.

  • Outstanding port to port isolation of 30 dB typical
  • VSWR of less than 1.5
  • Great upper side lobe suppression
  • Adjustable scissors-style pipe mount bracket with 0-10° downtilt
Outdoor yes
Aerial gain 16 dBi
Connection N
Connection type Socket (Female)
Mounting method Pipe mount bracket
Height 90 mm
Width 711 mm
Depth 171 mm

Key Features

  • Outdoor: yes
  • Aerial gain: 16 dBi
  • Connection: N
  • Connection type: Socket (Female)
  • Mounting method: Pipe mount bracket
  • Height: 90 mm
