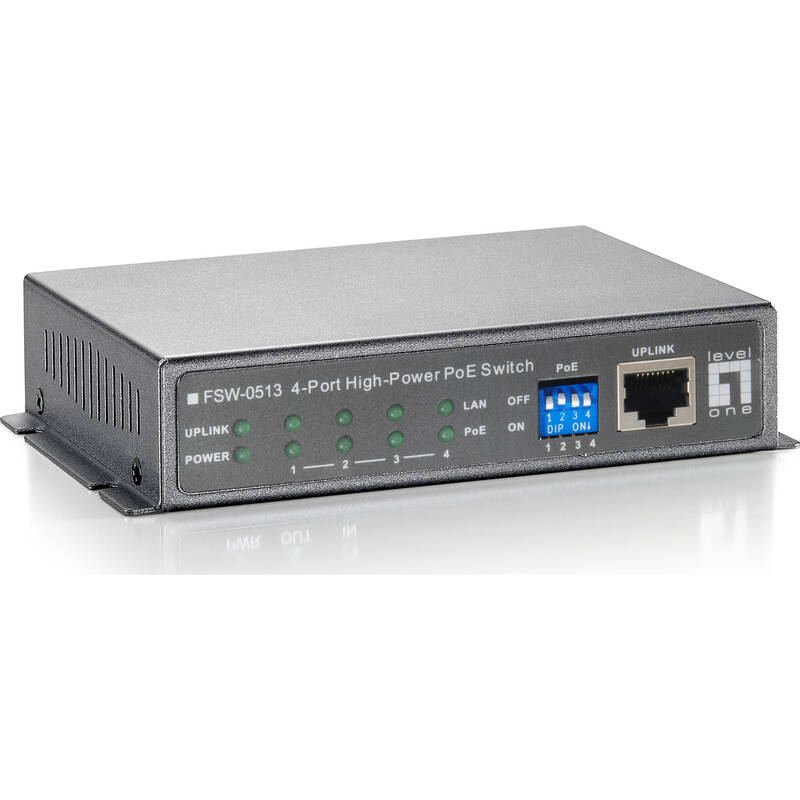

5-Port Fast Ethernet PoE Switch, 4 PoE Outputs, 120W, power adapter included

Part Code: FSW-0513

FSW-0513 is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513 is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters. With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513 is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513 in a 19" chassis (POC-6000) for a large-scale rack-mount PoE solution. FSW-0513 supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.

  • Provides flexibility of 4 x 10/100BASE-TX PoE ports
  • PoE on/off control per port by dip switches
  • Auto-detection and protection of non-standard PoE devices
  • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Total PoE power budget: 120W, up to 52W per port
Manageability Unmanaged
Number of ports PoE 4
Number of ports 10/100 Mbps RJ45 5
Power over Ethernet 802.3 af (PoE)
Max. PoE power 120 W
Height 28 mm
Width 90 mm
Depth 120 mm
Mounting method Desk type
Max. power consumption 120 W

Key Features

  • Manageability: Unmanaged
  • Number of ports PoE: 4
  • Number of ports 10/100 Mbps RJ45: 5
  • Power over Ethernet: 802.3 af (PoE)
  • Max. PoE power: 120 W
  • Height: 28 mm
