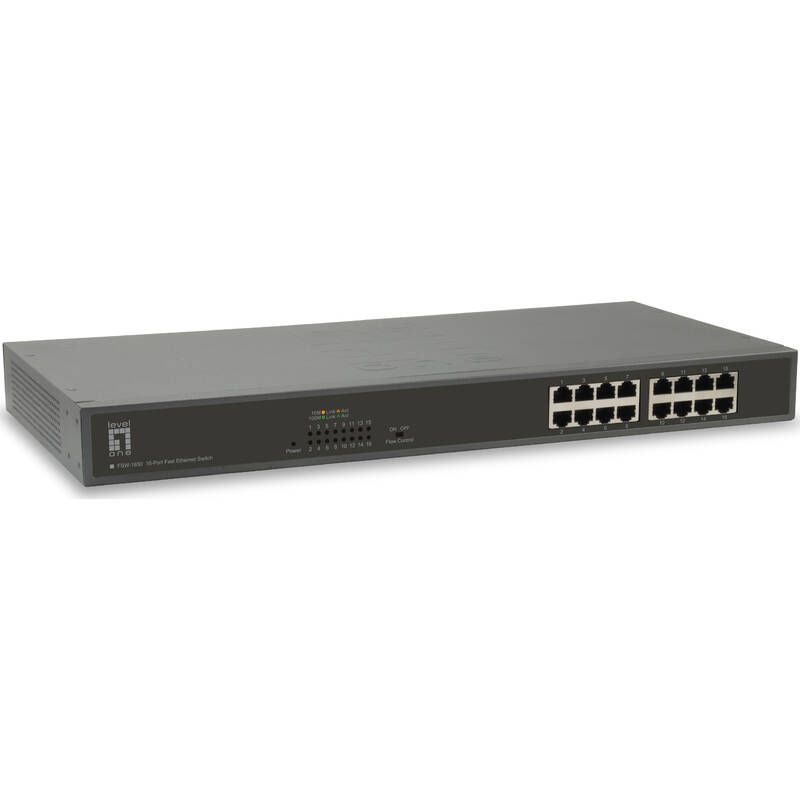

16-Port Fast Ethernet Switch

Part Code: FSW-1650

The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.Advanced Networking FeaturesThe LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for fullduplex network connectivity, auto-negotiation and Auto-MDIX.The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss. Compact DesignThe FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.Quick Configuration and Easy MaintenanceThe LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and networktroubleshooting.

  • Provides flexibility of 24 x 10/100BASE-TX ports
  • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 8K MAC address auto-learning and auto-aging
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 19-inch metal housing
Manageability Unmanaged
Number of ports 10/100 Mbps RJ45 16
Power over Ethernet 802.3 af (PoE)
Height 44 mm
Width 440 mm
Depth 208 mm
Mounting method 19 inch mounting
Max. power consumption 6.6 W

Key Features

  • Manageability: Unmanaged
  • Number of ports 10/100 Mbps RJ45: 16
  • Power over Ethernet: 802.3 af (PoE)
  • Height: 44 mm
  • Width: 440 mm
  • Depth: 208 mm
