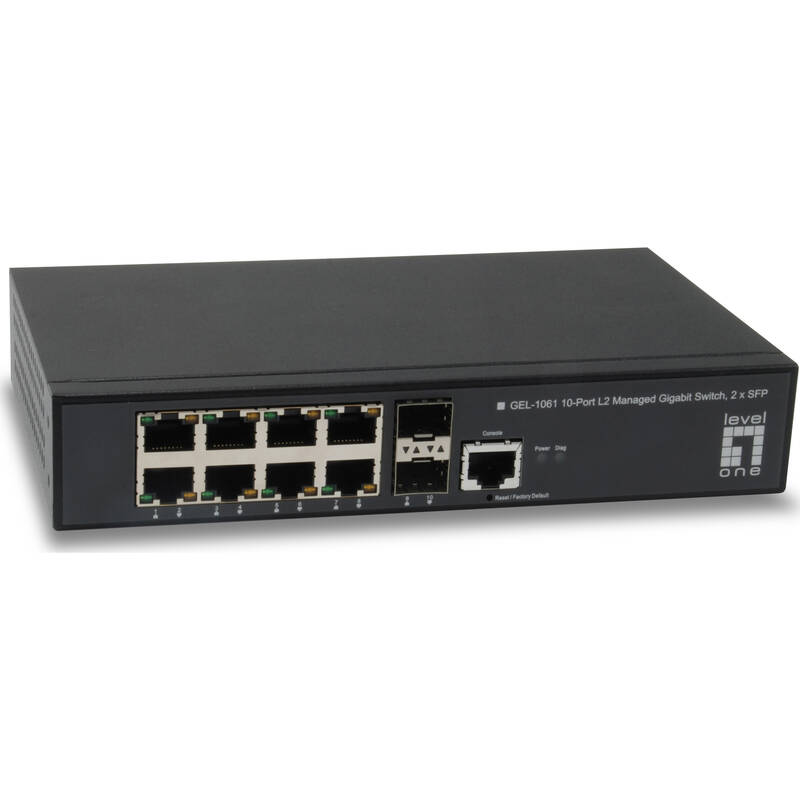

10-Port L2 Managed Gigabit Switch, 2 x SFP

Part Code: GEL-1061

The GEL-1061 is a L2 managed switches designed for the SMB market. The switches can be deployed indifferent target network topologies, from small to large.As well as IPv4 and IPv6 features. The GEL-1061 includes the best green-saving technologies(IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.

  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports Access Control List (ACL) authentication of up to 512 entries and port-based security with IEEE802.1X
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
  • Supports IPv4/IPv6 network operation
  • IEEE 802.1p QoS with 8 priority queues
Manageability Fully managed
Maximum number of concurrent connections 8+2
Number of ports 10/100/1000 Mbps RJ45 8
Power over Ethernet Not applicable
Layer 2 yes
Height 36 mm
Width 196 mm
Depth 117 mm
Mounting method Desk type
Number of ports 100/1000 Mbps SFP 2

Key Features

  • Manageability: Fully managed
  • Maximum number of concurrent connections: 8+2
  • Number of ports 10/100/1000 Mbps RJ45: 8
  • Power over Ethernet: Not applicable
  • Layer 2: yes
  • Height: 36 mm
