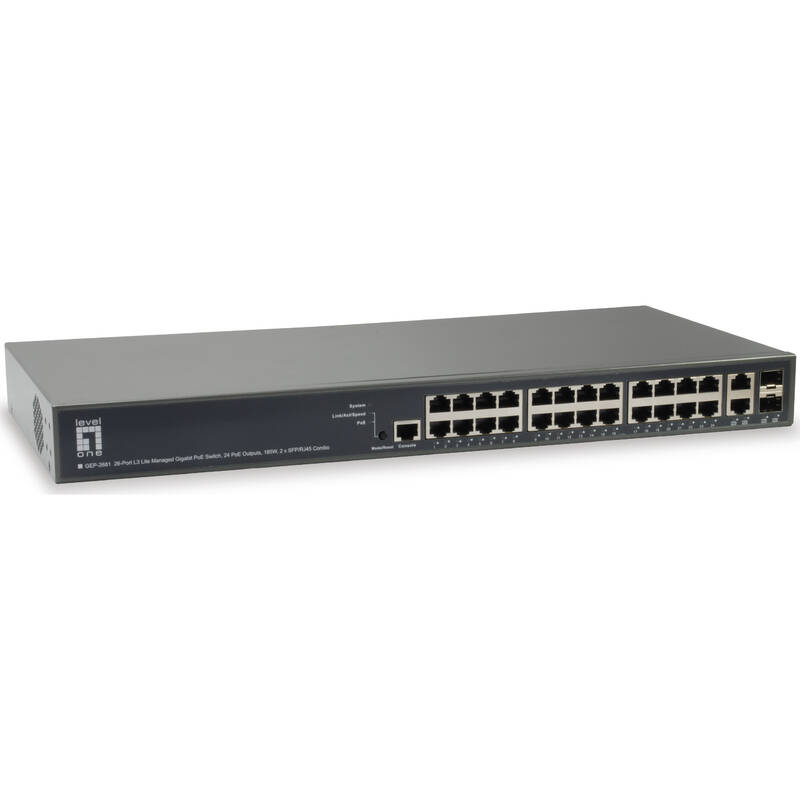

26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 185W, 2 x SFP/RJ45 Combo

Part Code: GEP-2681

LevelOne GEP-2681 L3 Lite Managed PoE+ Switch is a next-generation Ethernet Switch offering a full suite of L2 features, better PoE functionality and increased usability. The switch includes advanced L3 features such as Static Route, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections. LevelOne GEP-2681 delivers 24 (10M/100M/1000Mbps) RJ45/PoE+ (Supporting 802.3at/af, and a total of up to 185W) ports, 2 Combo GbE RJ45/SFP ports and an RJ45 Console port. LevelOne GEP- 2681 provides high HW performance and environment flexibility for SMBs and Enterprises. LevelOne GEP-2681 is ideal to deliver management simplicity, an intuitive user experience, and lower costs. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install a network of IP Phones, IP Cameras, or Wifi AP for any scale of enterprise applications.

  • 24 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots
  • QoS control for traffic prioritization and bandwidth management
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Supports Universal Plug and Play (UPnP) for auto-configure network devices
  • IEEE 802.3ad LACP for auto port aggregation
Manageability Fully managed
Number of ports PoE 24
Number of ports 10/100/1000 Mbps RJ45 24
Number of combination-Ports RJ45/SFP 2
Number of other ports 1
Power over Ethernet 802.3 at (PoE+)
Max. PoE power 185 W
Layer 3 yes
Height 44 mm
Width 442 mm
Depth 211 mm
Mounting method 19 inch mounting

Key Features

  • Manageability: Fully managed
  • Number of ports PoE: 24
  • Number of ports 10/100/1000 Mbps RJ45: 24
  • Number of combination-Ports RJ45/SFP: 2
  • Number of other ports: 1
  • Power over Ethernet: 802.3 at (PoE+)
