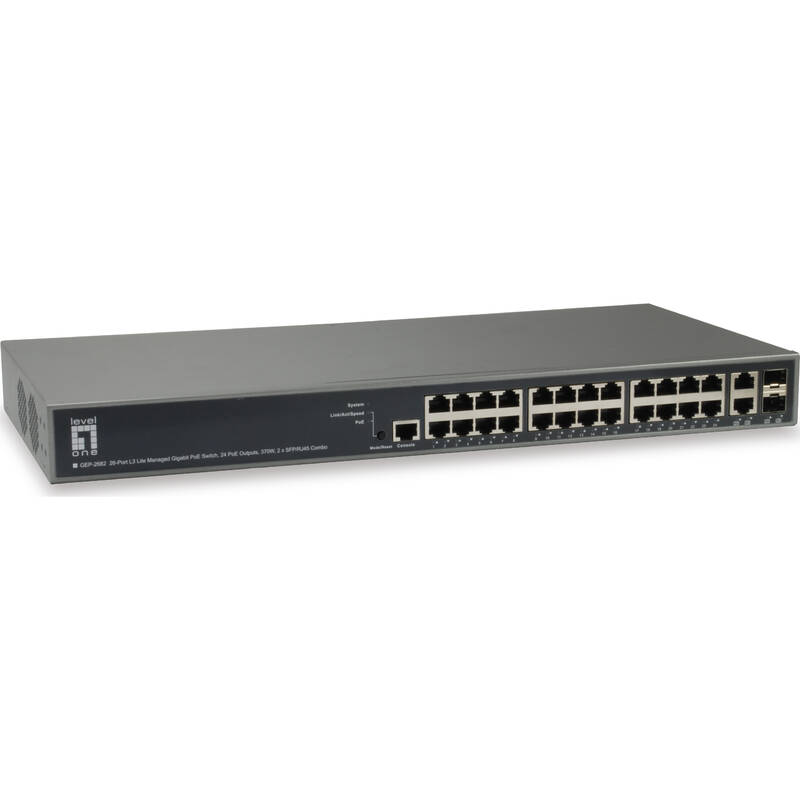

26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 370W, 2 x SFP/RJ45 Combo

Part Code: GEP-2682

LevelOne GEP-2682 L3 Lite Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections. LevelOne GEP-2682 delivers 24(10M/100M/1000Mbps.) RJ45/PoE+ (Support 802.3at/af, and total up to 370W) ports, 2 Combo GbE RJ45/SFP ports and RJ45 Console port. LevelOne GEP- 2682 provides high HW performance and environment flexibility for SMBs and Enterprises. LevelOne GEP-2682 is ideal to deliver management simplicity, intuitive user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or WifiAP for Enterprise Applications.

  • QoS control for traffic prioritization and bandwidth management
  • 24 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports Universal Plug and Play (UPnP) for auto-configure network devices
Manageability Fully managed
Number of ports PoE 24
Number of ports 10/100/1000 Mbps RJ45 24
Number of combination-Ports RJ45/SFP 2
Number of other ports 1
Power over Ethernet 802.3 at (PoE+)
Max. PoE power 370 W
Layer 3 no
Height 44 mm
Width 442 mm
Depth 211 mm
Mounting method 19 inch mounting

Key Features

  • Manageability: Fully managed
  • Number of ports PoE: 24
  • Number of ports 10/100/1000 Mbps RJ45: 24
  • Number of combination-Ports RJ45/SFP: 2
  • Number of other ports: 1
  • Power over Ethernet: 802.3 at (PoE+)
