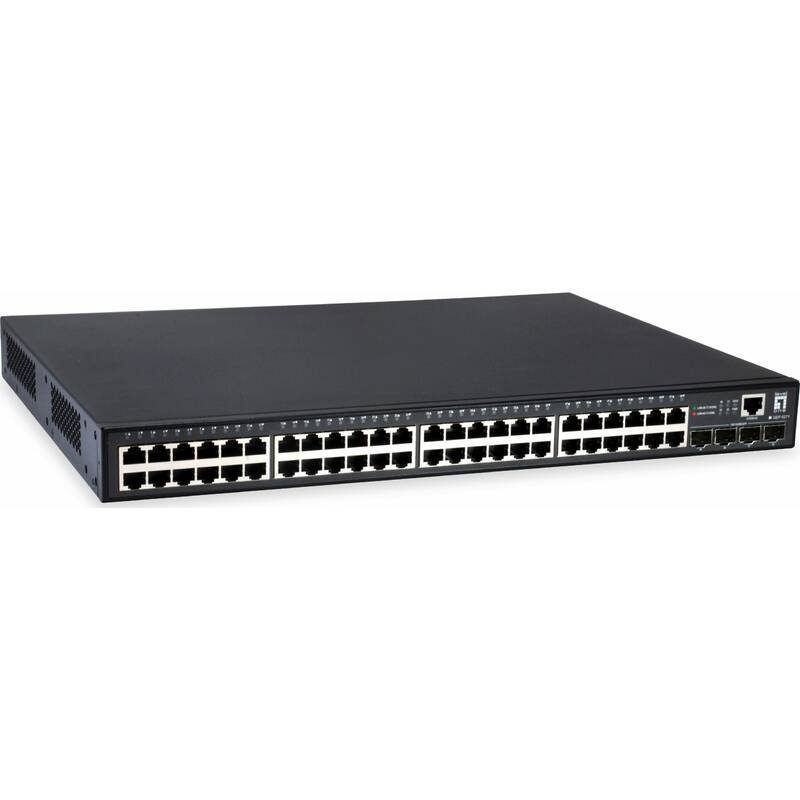

KILBY 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x SFP, 48 PoE Outputs, 370W

Part Code: GEP-5271

The LevelOne GEP-5271, a L3 Lite Managed PoE Switch with 48 ports of Gigaibit RJ45 PoE with 4 100M/1G uplink SFP ports. This switch is offering full suite of L2 management features, better PoE functionality with 370W PoE power budget and usability, The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements.

Including advanced L3 features such as Static Route and RIP v1/v2 that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.

  • 48 Gigabit Ethernet ports and 4 Gigabit SFP slots
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Total PoE power budget: 370W, up to 30W per port
  • Supports VLAN (Port-based, Protocol-based, Private, Q-in-Q, Tag-based) and GVRP
  • Supports Operations, Administration, and Maintenance (OAM) mechanisms
  • Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • QoS control for traffic prioritization and bandwidth management
  • Supports IPv4/IPv6 network operation
  • Virtual stacking supports up to 36 switches in a single logical stack for unified management, monitoring and configuration
Manageability Fully managed
Maximum number of concurrent connections 53
Number of ports PoE 48
Number of ports 10/100/1000 Mbps RJ45 48
Power over Ethernet 802.3 at (PoE+)
Layer 3 yes
Switching capacity 104 Gbps
Packet buffer 256 MB
Height 44 mm
Width 440 mm
Depth 330 mm
Mounting method 19 inch mounting
Max. power consumption 480 W
Number of ports 100/1000 Mbps SFP 4

Key Features

  • Manageability: Fully managed
  • Maximum number of concurrent connections: 53
  • Number of ports PoE: 48
  • Number of ports 10/100/1000 Mbps RJ45: 48
  • Power over Ethernet: 802.3 at (PoE+)
  • Layer 3: yes
