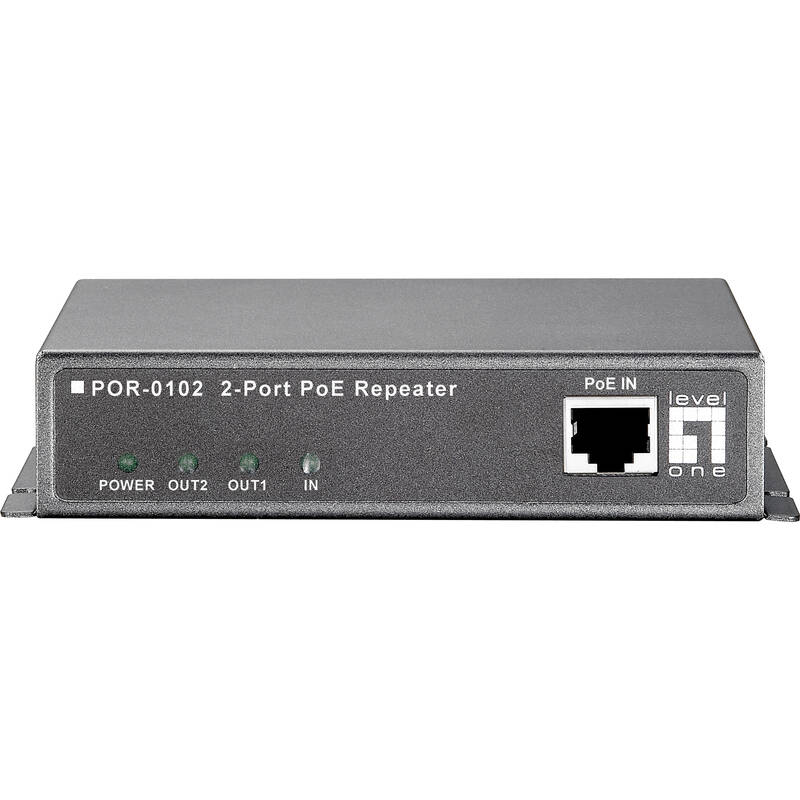

PoE Repeater, 2 Ports, Cascadable

Part Code: POR-0102

For system integrators looking for a professional solution to help extend their PoE network, POR-0102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility. As a PoE Repeater, POR-0102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-0102 uses no external power supply, making it an ideal component for system integrators looking to increase the distance of the attached devices. With a durable metal housing and small footprint, POR-0102 fits into any tight deployment. POR-0102 works great for large IP surveillance networks with many cameras deployed throughout a building or campus. It is also an ideal solution for outdoor wireless access points that are located far from the network control center.

  • Extends Cat.5 cable installations to beyond 100 meters
  • 2-Port Ethernet Power Sourcing Equipment(PSE)
  • Forwards Power over Ethernet (PoE) to remote device
  • Fully transparent no restrictions to network traffic
  • No power required
  • Simple to install works instantly
Transmission standard Ethernet
Max. PoE power 2.5 W
Number of ports PoE 1
Primary voltage 44...57 V
Mounting method Free-standing
Width 165 mm
Height 95 mm
Depth 180 mm
Model Repeater

Key Features

  • Transmission standard: Ethernet
  • Max. PoE power: 2.5 W
  • Number of ports PoE: 1
  • Primary voltage: 44...57 V
  • Mounting method: Free-standing
  • Width: 165 mm
