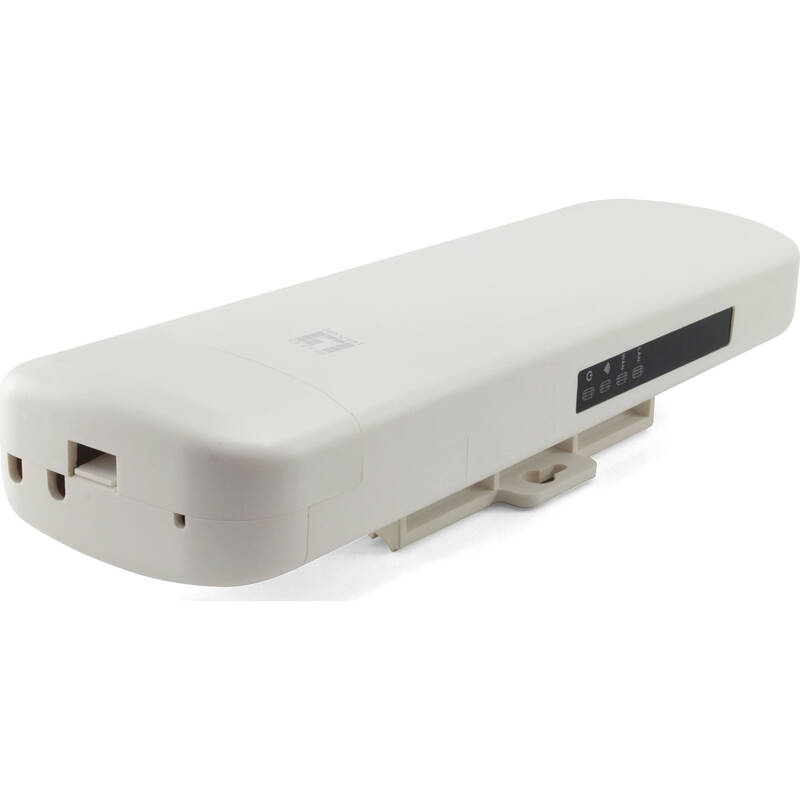

N300 Outdoor PoE Wireless Access Point, Controller Managed

Part Code: WAB-6010

The LevelOne WAB-6010 is a managed, outdoor single-band 802.11n wireless access point, capable of 300 Mbps wireless internet speeds. The device runs on 2.4 GHz frequency, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-6010 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.

  • Share your wireless network up to 300Mbps
  • Compatible with IEEE 802.11b/g/n wireless standards
  • Multi-operation modes to suit different wireless applications
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Weatherproof IP65-rated housing
  • Provides up to 4 SSIDs to separate network traffic and enhance security
Max. data transmission rate 300 Mbit/s
Frequency band 2.4 GHz
Managed yes
Radio protocol IEEE 802.11 b/g/n
Number of ports 10/100 Mbps LAN 1
Repeater function yes
Power over Ethernet yes
Width 257 mm
Height 38 mm
Depth 87 mm
IP-rating IP65
Built-in Antenna yes
Pole fastening yes
Number of users 64

Key Features

  • Max. data transmission rate: 300 Mbit/s
  • Frequency band: 2.4 GHz
  • Managed: yes
  • Radio protocol: IEEE 802.11 b/g/n
  • Number of ports 10/100 Mbps LAN: 1
  • Repeater function: yes
