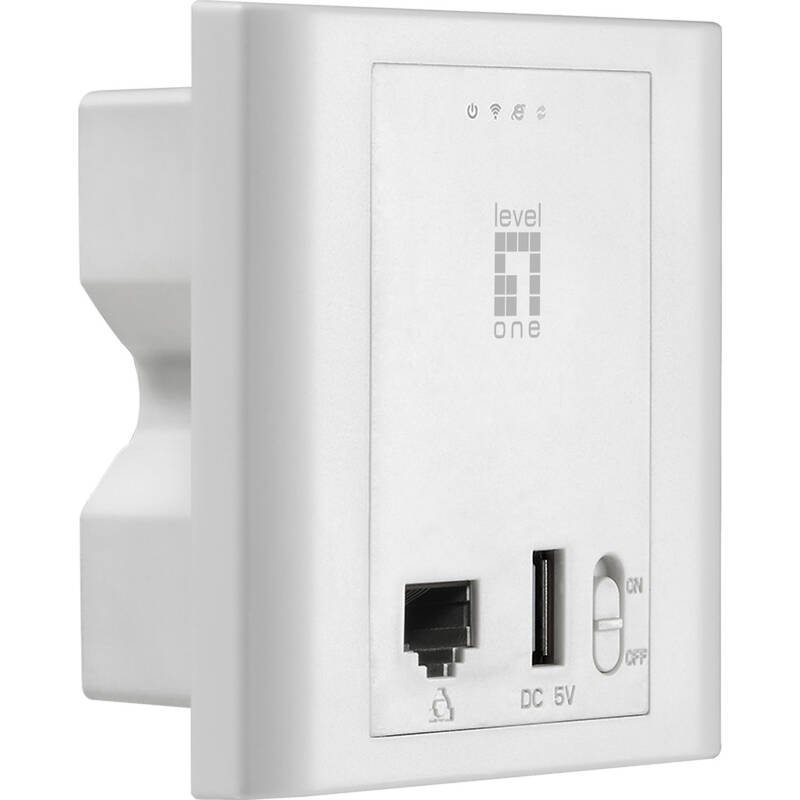

N300 PoE Wireless Access Point, In-Wall Mount, Controller Managed

Part Code: WAP-6221

The LevelOne WAP-6221 is a superior quality Wi-Fi access point delivering ultra high-speed connectivity and extended coverage. The device is PoE, so does not need to be placed near a power source. Designed to be mounted on a wall, the stylish low profile and front port access compliments the device’s powerful performance, and built-in USB charger port . Work with WAC-2000 can make configuration easier.

  • Share your wireless network up to 300Mbps
  • Compatible with IEEE 802.11b/g/n wireless standards
  • Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high level security
  • Provides up to 4 SSIDs to separate network traffic and enhance security
  • Multi-operation modes to suit different wireless applications
  • IEEE 802.3af PoE compliant to simplify deployment and installation
  • In-wall mounted design fits standard 86x86mm socket
Max. data transmission rate 300 Mbit/s
Frequency band 2.4 GHz
Managed yes
Radio protocol IEEE 802.11 b/g/n
Encryption WPA and WPA2
Number of ports 10/100 Mbps LAN 1
Repeater function yes
Power over Ethernet yes
Width 86 mm
Height 68 mm
Depth 86 mm
Ceiling mounting no
Built-in Antenna yes
Wall mounting yes

Key Features

  • Max. data transmission rate: 300 Mbit/s
  • Frequency band: 2.4 GHz
  • Managed: yes
  • Radio protocol: IEEE 802.11 b/g/n
  • Encryption: WPA and WPA2
  • Number of ports 10/100 Mbps LAN: 1
