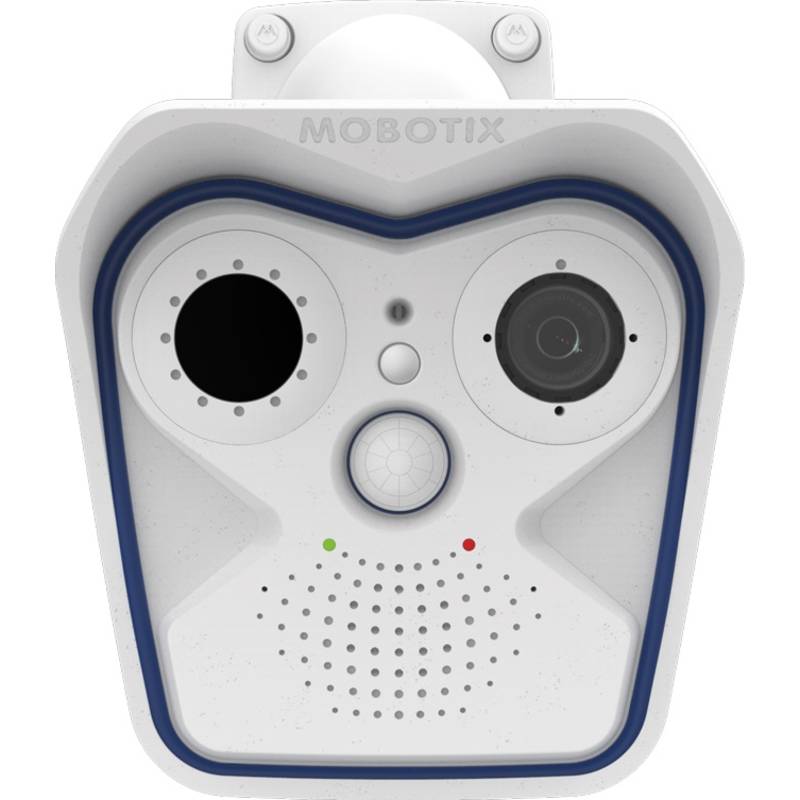

M16B Thermographic Camera TR, 50 mK, R079 (45°)

Part Code: MX-M16TB-R079

The intelligent video system with an integrated high-performance thermal image sensor takes full advantage of the M16B camera design. Thanks to the two directly adjacent lenses, there is also a thermal overlay function with image overlay (thermal and optical) to pinpoint the exact location of hotspots like smoldering fires in a visible image. The MOBOTIX TR cameras feature a calibrated thermal image sensor. Thermal radiation measurements made across the entire image area can be used to trigger an event based on the temperature increasing above or decreasing below an individually set trigger level (camera alarm, network message, activation of a signal output etc.)

  • Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
  • Fixed premium thermal image sensor with an NETD of 50 mK
  • Thermal Radiometry for measurable added value: calibrated thermal image sensor
  • Thermal field of view: 45°
  • Additional image sensor module options
  • Recording on an internal MicroSD card (4GB as standard)
  • Integrated microphone and speaker
  • MxActivitySensor can also be used in total darkness
  • PoE thermal camera with a power consumption of < 10 W
Model Box
Mounting method Wall/ceiling
Area of application Outdoor
Transmission TCP/IP
Power over Ethernet 802.3 af (PoE)
Property picture system Thermal
Focal range 7.9...7.9 mm
Colour White
Wireless no
Number of pixels (Megapixel) 2X6
Storage capacity 4 GB
With lens yes
With IR lamp no
Vandal-resistant yes
IK Rating IK06
Built-in Analytics yes
IP-rating IP66
Horizontal field of view 45...45 °
Vertical field of view 32...32 °
Power consumption 10 W
Height 210 mm
Width 158 mm
Depth 207 mm
ONVIF-compliant yes

Key Features

  • Model: Box
  • Mounting method: Wall/ceiling
  • Area of application: Outdoor
  • Transmission: TCP/IP
  • Power over Ethernet: 802.3 af (PoE)
  • Property picture system: Thermal
