Excel Excel Category 5E Cable U/UTP External Grade Fca PE 305m Box - Black

Part Code: 100-090

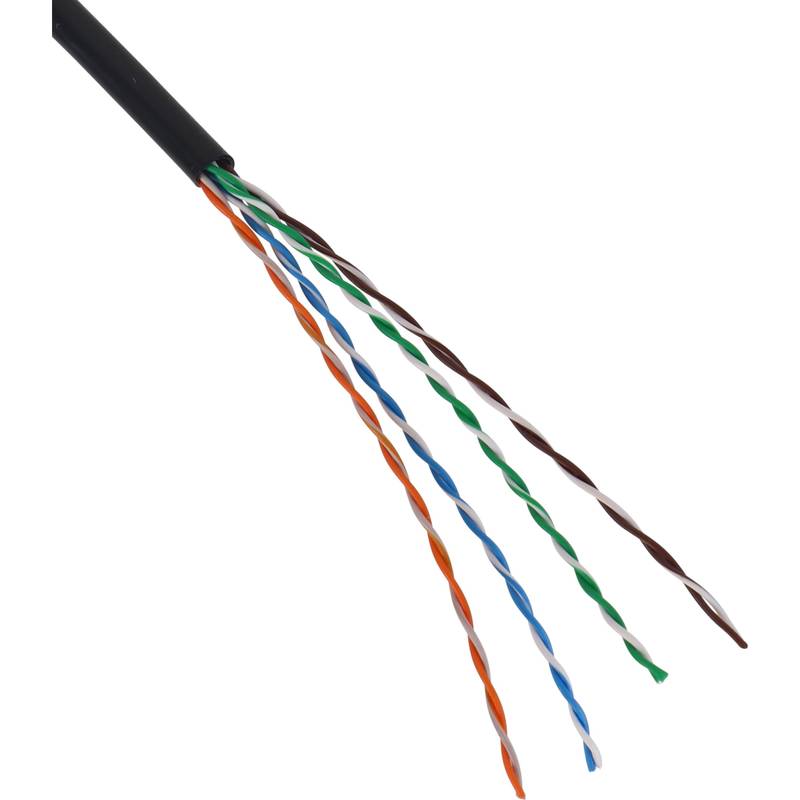

Excel Category 5e Unscreened External Grade Cables are manufactured and tested to the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards for enhanced performance Category 5 cables. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for outdoor installation.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • External duct grade
  • Supports Gigabit Ethernet
  • Fast feed box
  • Sequential metre markings
  • Euroclass Fca
Category 5E
Overall screening None
Conductor screening None
Outer sheath colour Black
Reaction-to-fire class according to EN 13501-6 Fca
AWG-size 24
Specification core insulation PE
Core identification Colour
Outer sheath material PE
Halogen free (acc. EN 60754-1/2) no
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) no
Outer diameter approx. 5.2 mm
Operating Temperature Range -20...60 °C
NVP value 70 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 5E
  • Overall screening: None
  • Conductor screening: None
  • Outer sheath colour: Black
  • Reaction-to-fire class according to EN 13501-6: Fca
  • AWG-size: 24
